OpenFOAM result pack

Flow diagnostics

Live room

Solver

stableincompressible flow preview

Cells

88,791real fluid mesh

Flow

0.03 m3/sbaseline inlet

P98 speed

0.367 m/svelocity magnitude

L/R delta

10.0%rough symmetry metric

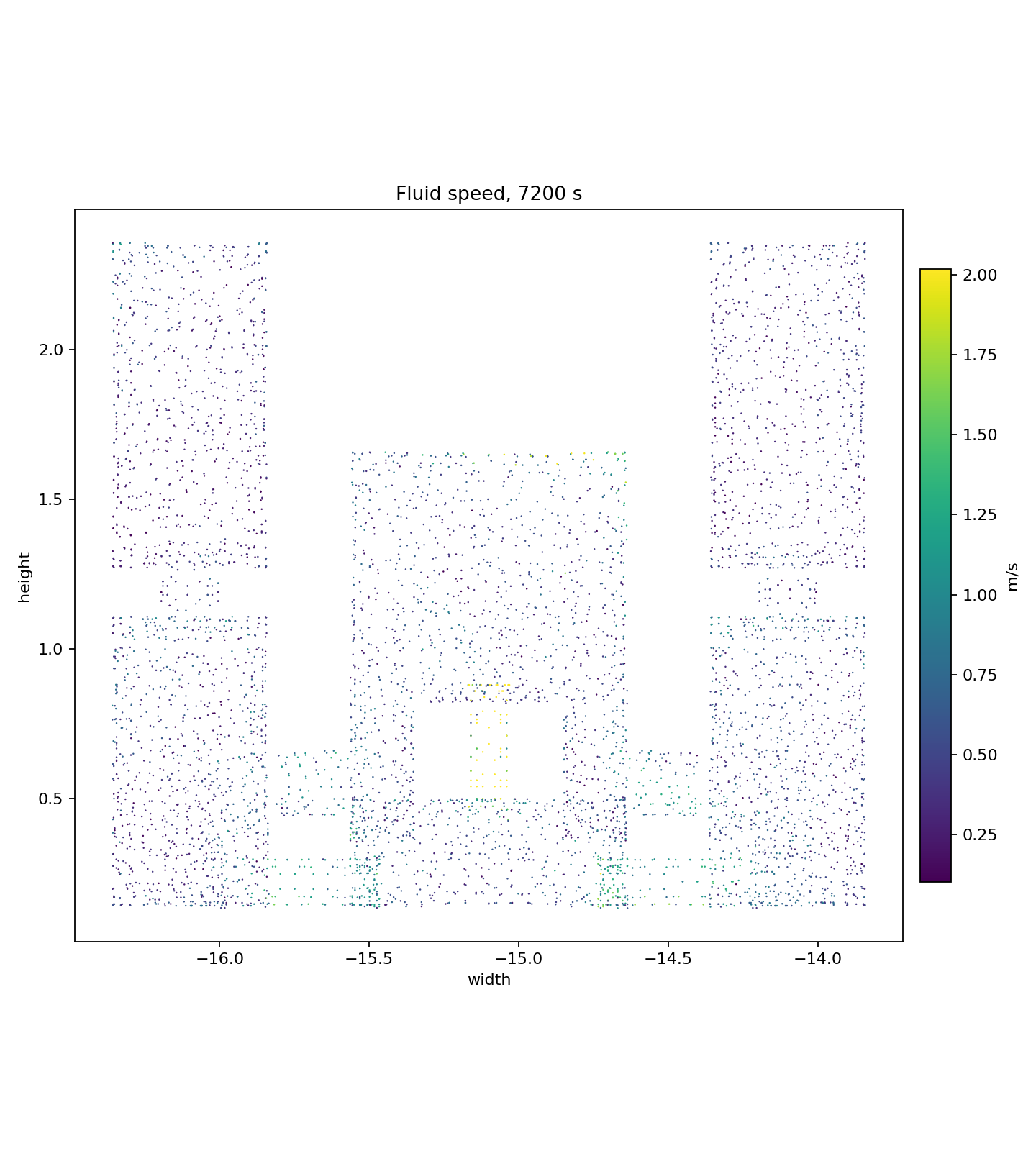

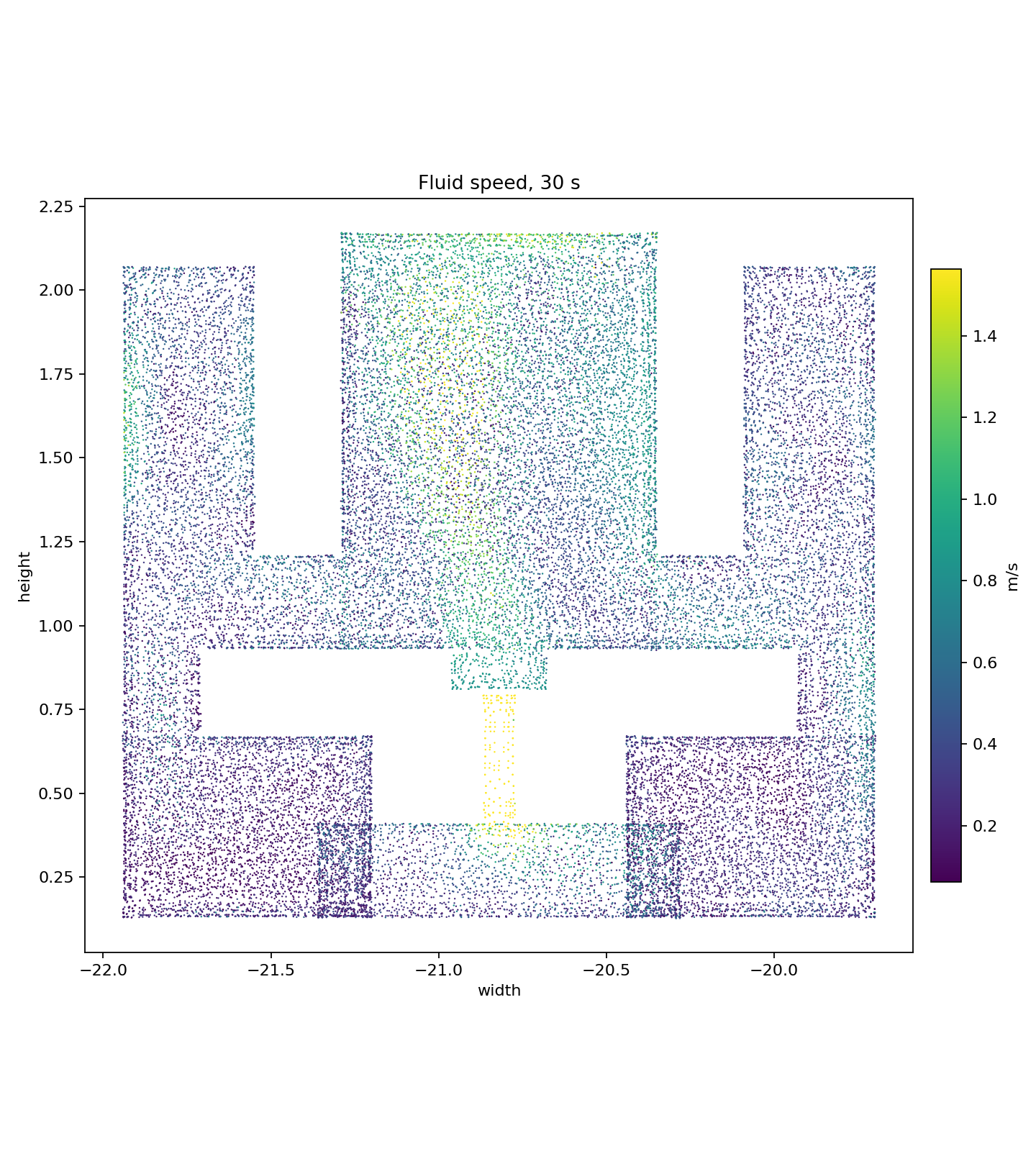

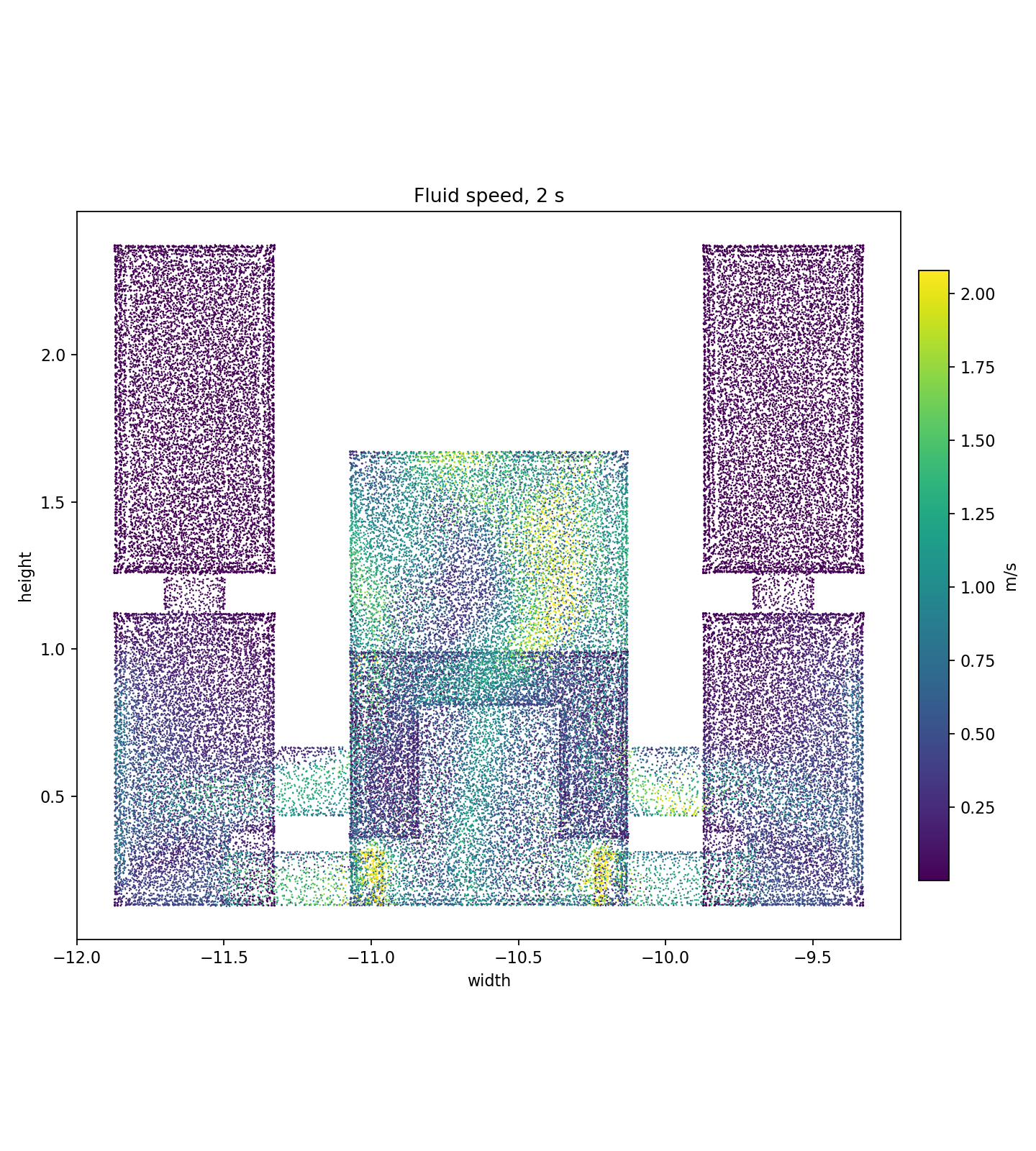

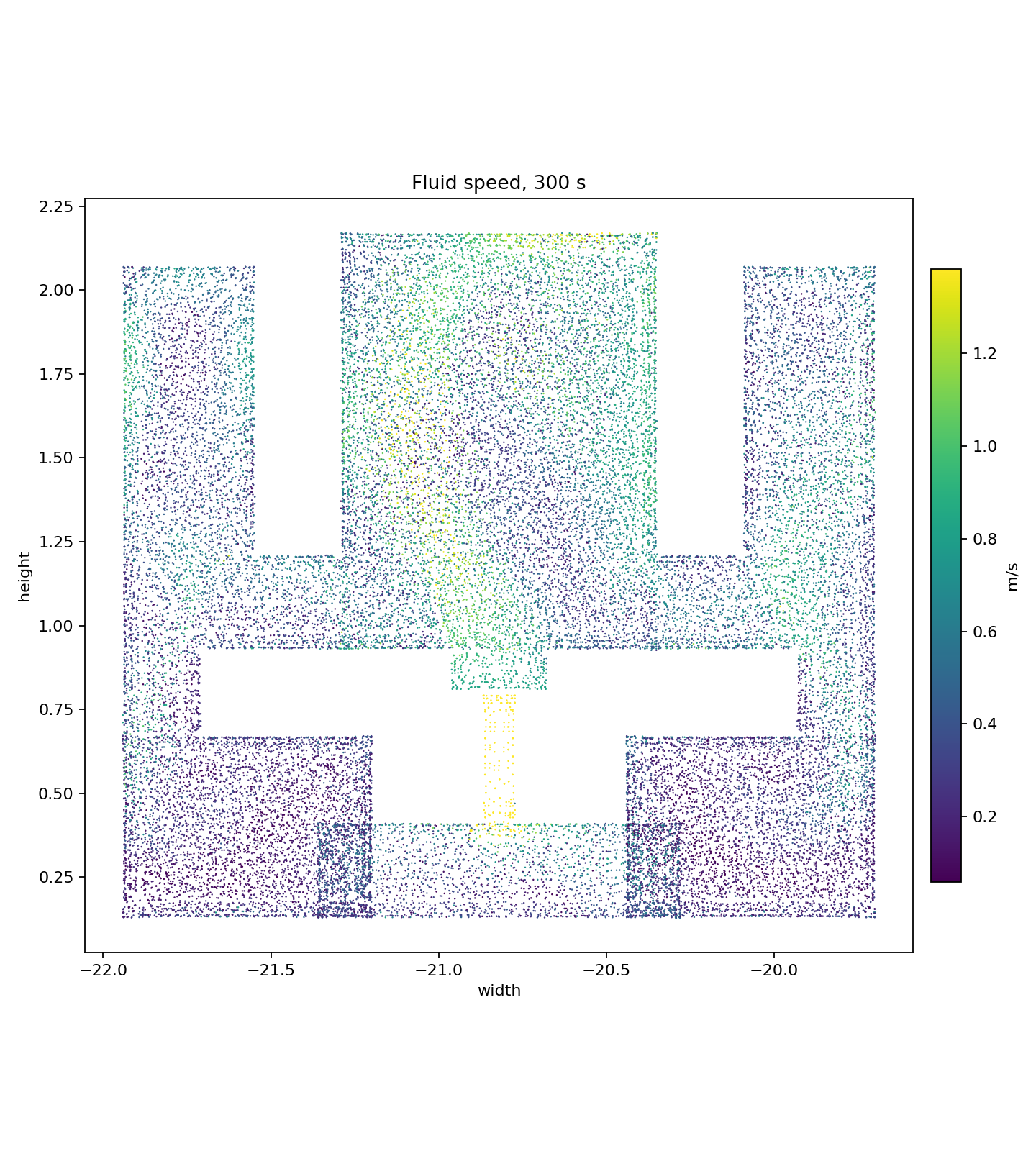

Velocity

OpenFOAM velocity magnitude result

Streamlines

OpenFOAM projected streamlines

Pressure

OpenFOAM pressure result

Symmetry

OpenFOAM left right symmetry result

Warm solver

stablecompressible warm-flow bridge

Inlet temp

127 C400 K safe warm case

Warm p98 speed

0.130 m/slower thermal velocity field

Warm L/R delta

0.9%very balanced in this run

T range

20-127 Cstable temperature field

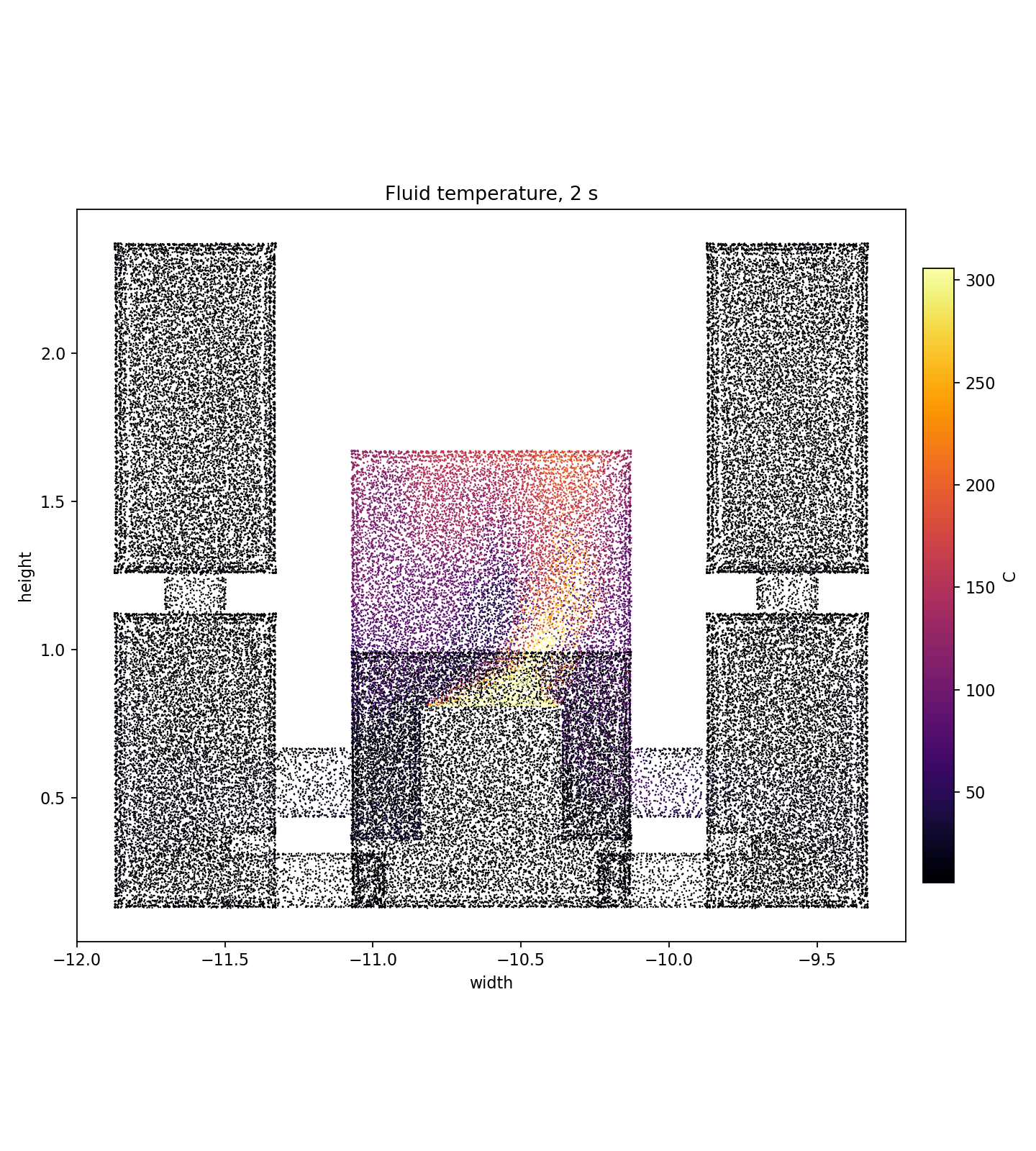

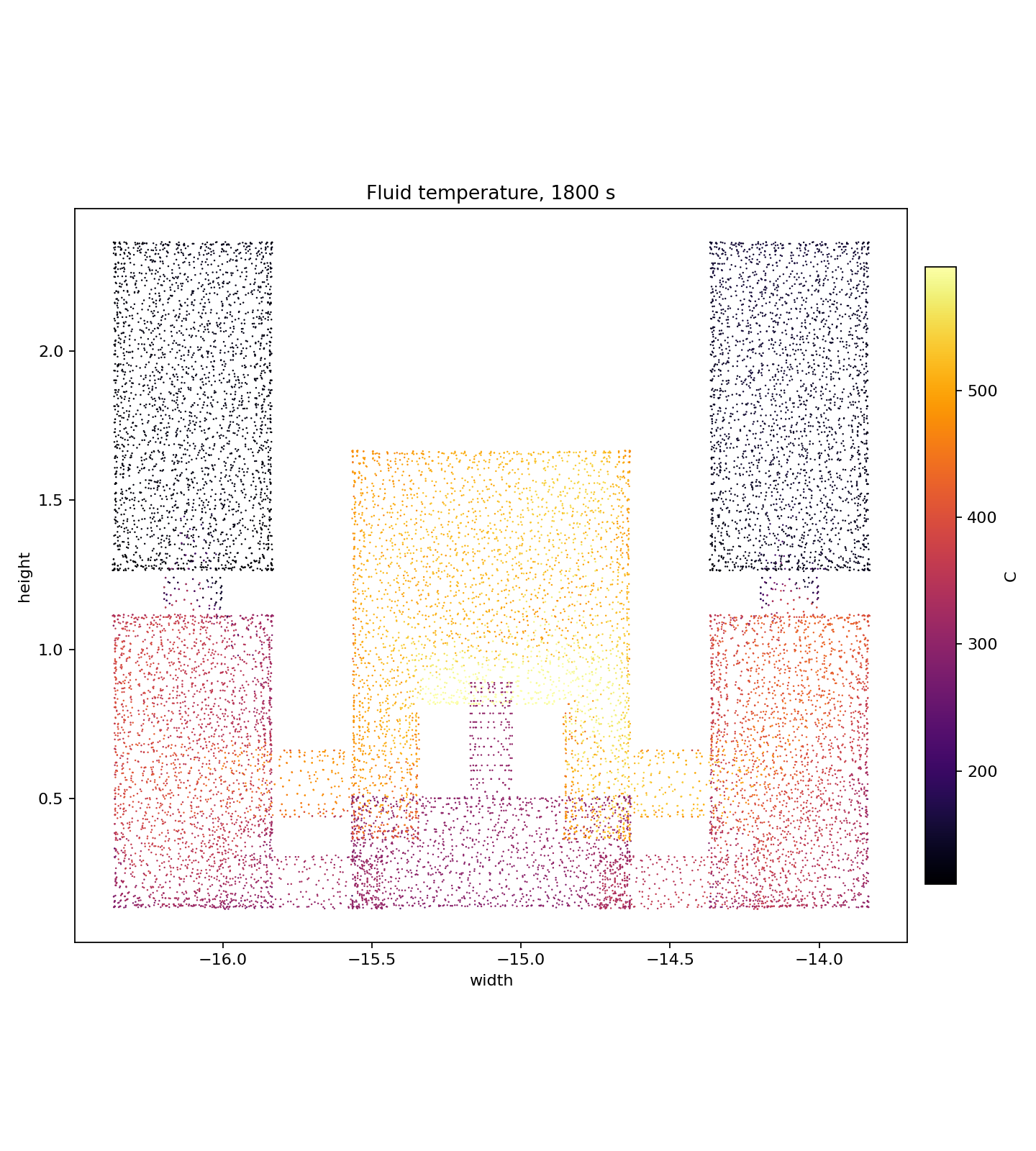

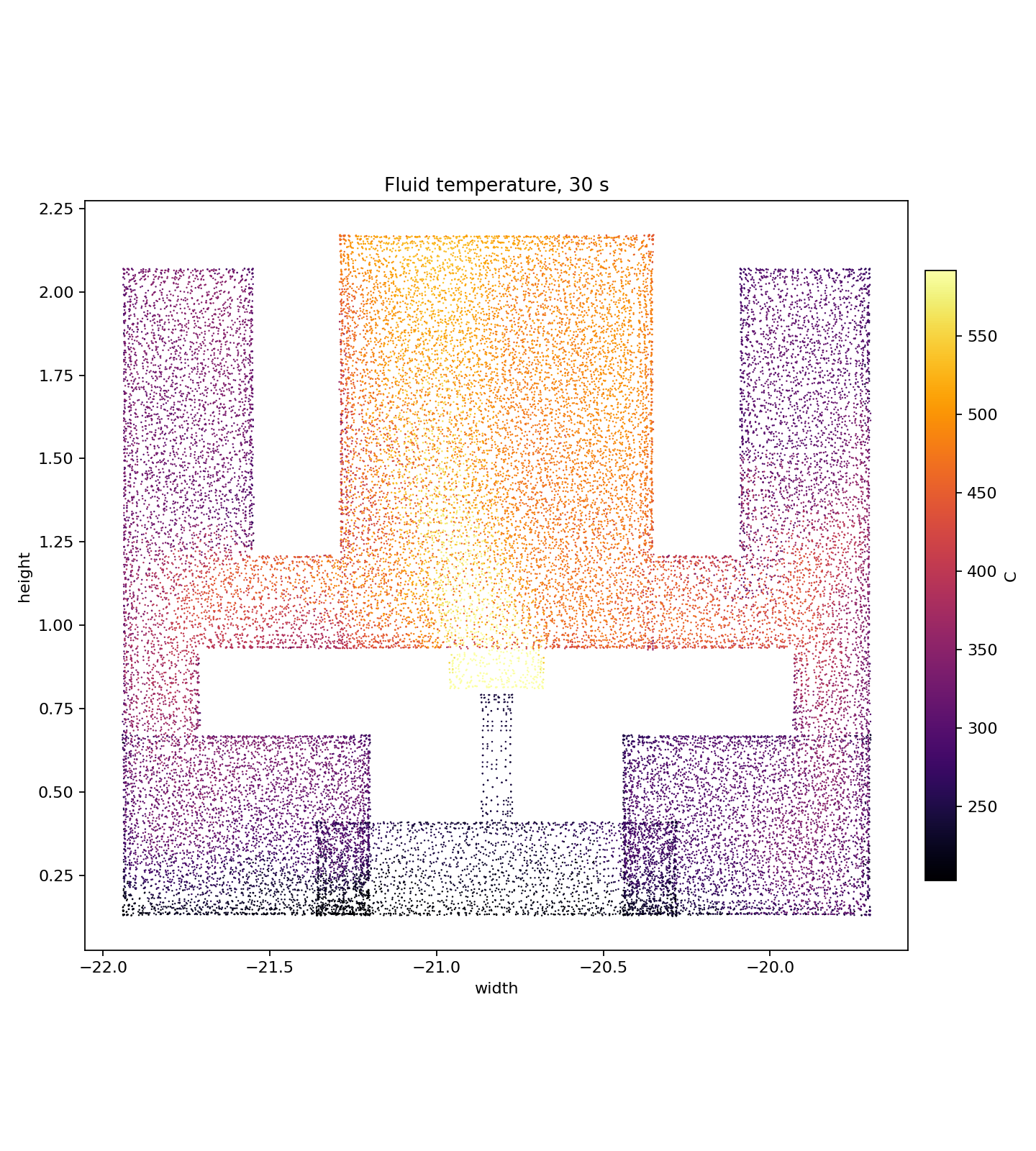

Warm temperature

Warm flow temperature result

Warm velocity

Warm flow velocity result

Warm density

Warm flow density result

Warm simulation note

  • This is the second simulation after the isothermal baseline.
  • It adds compressible warm gas at 400 K without jumping to 700 C.
  • The run completed cleanly to 0.08 s.
  • Next increase is 500 K, then buoyant gravity, then masonry coupling.

Ramp

stable500 K to 973 K completed

Max tested

700 C973 K inlet

Ramp p98 speed

0.134 m/sat 973 K

Ramp L/R delta

1.0%very balanced

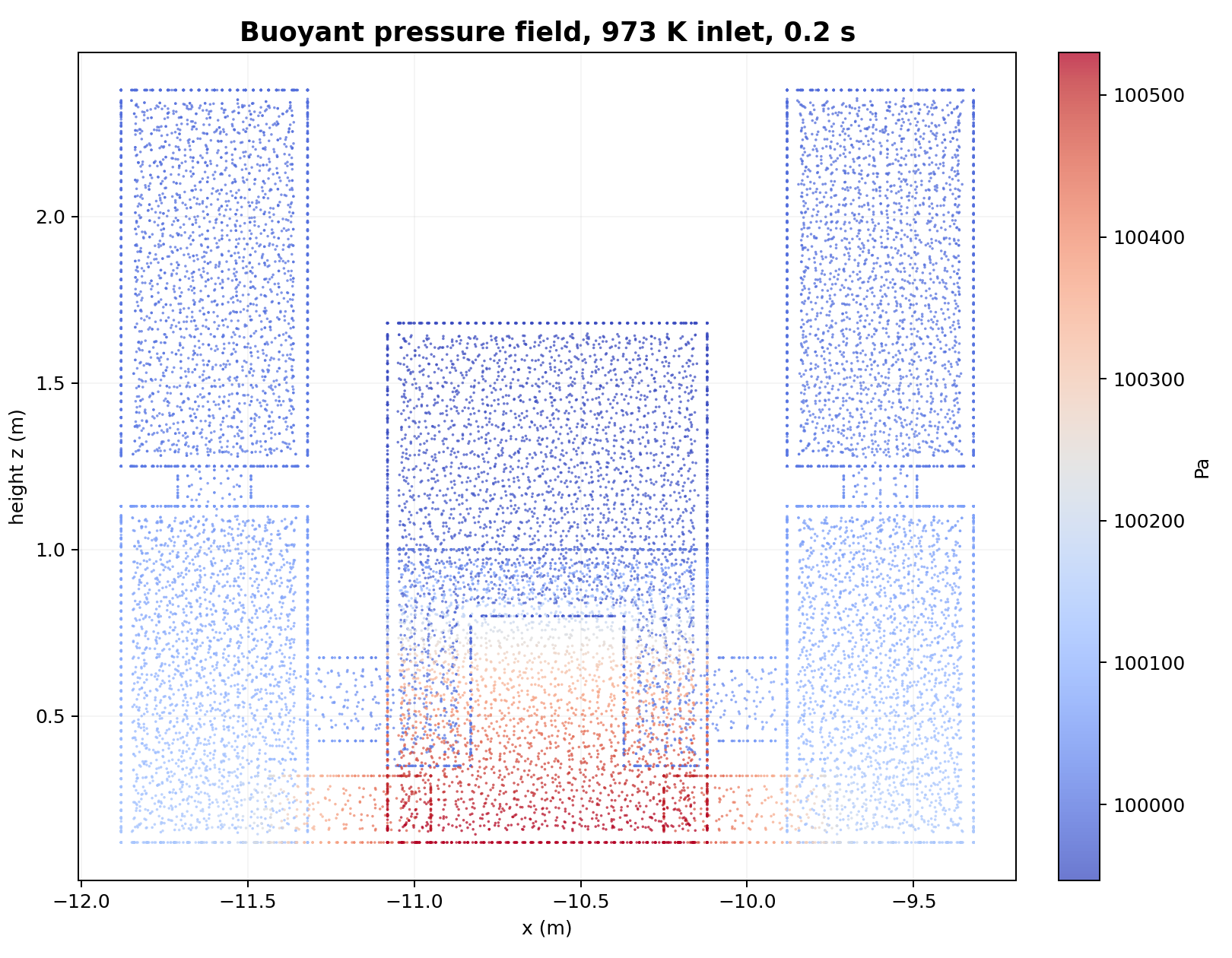

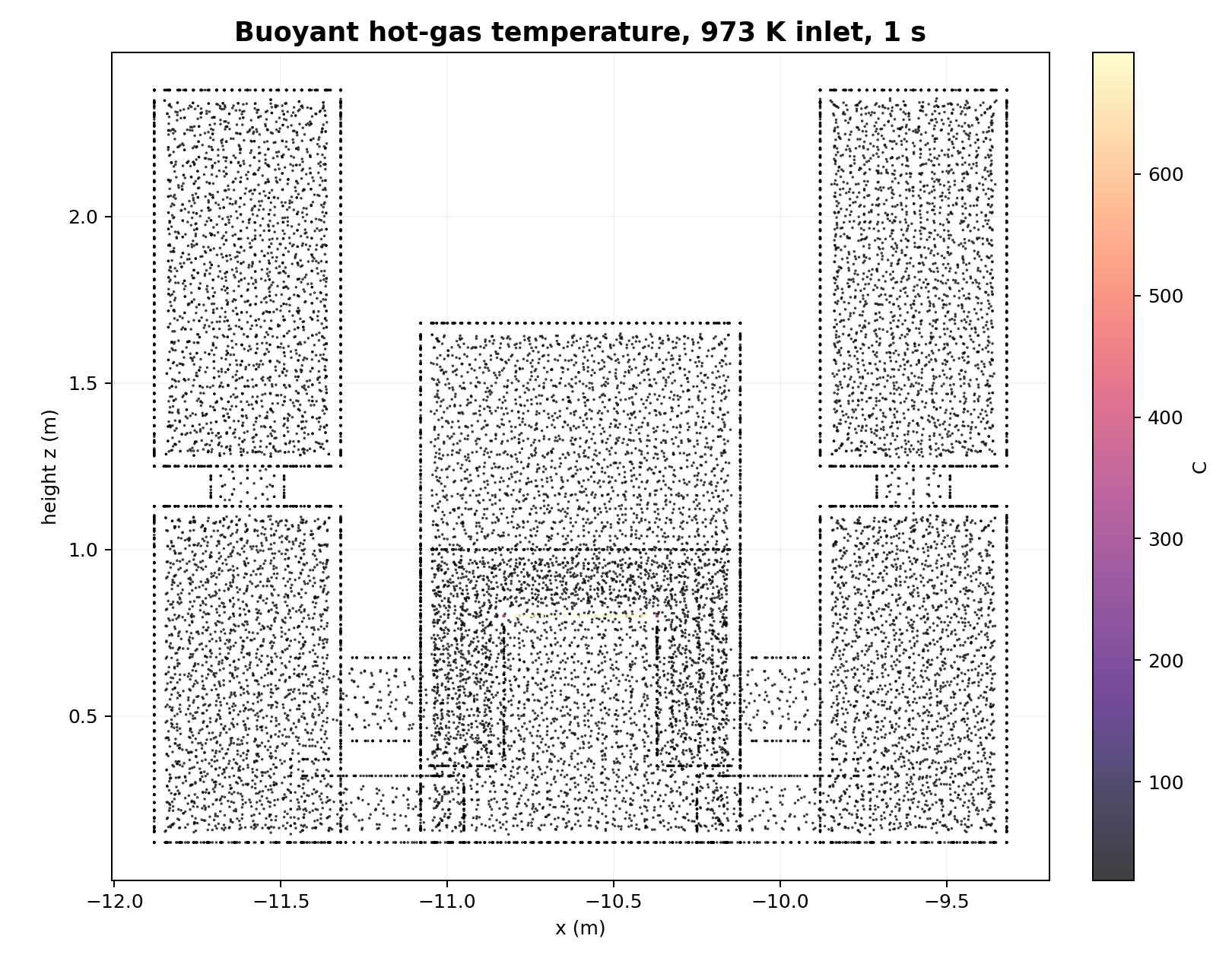

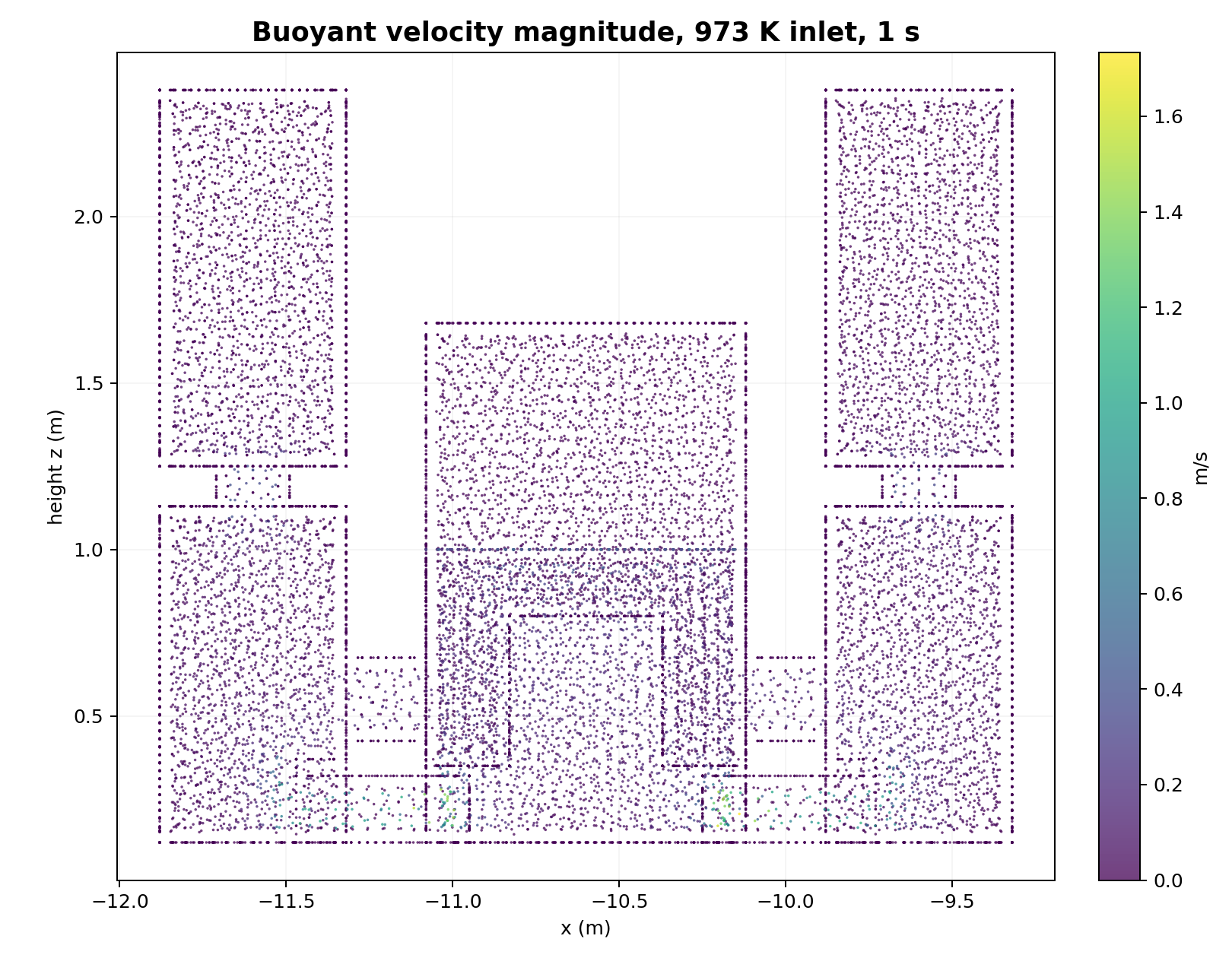

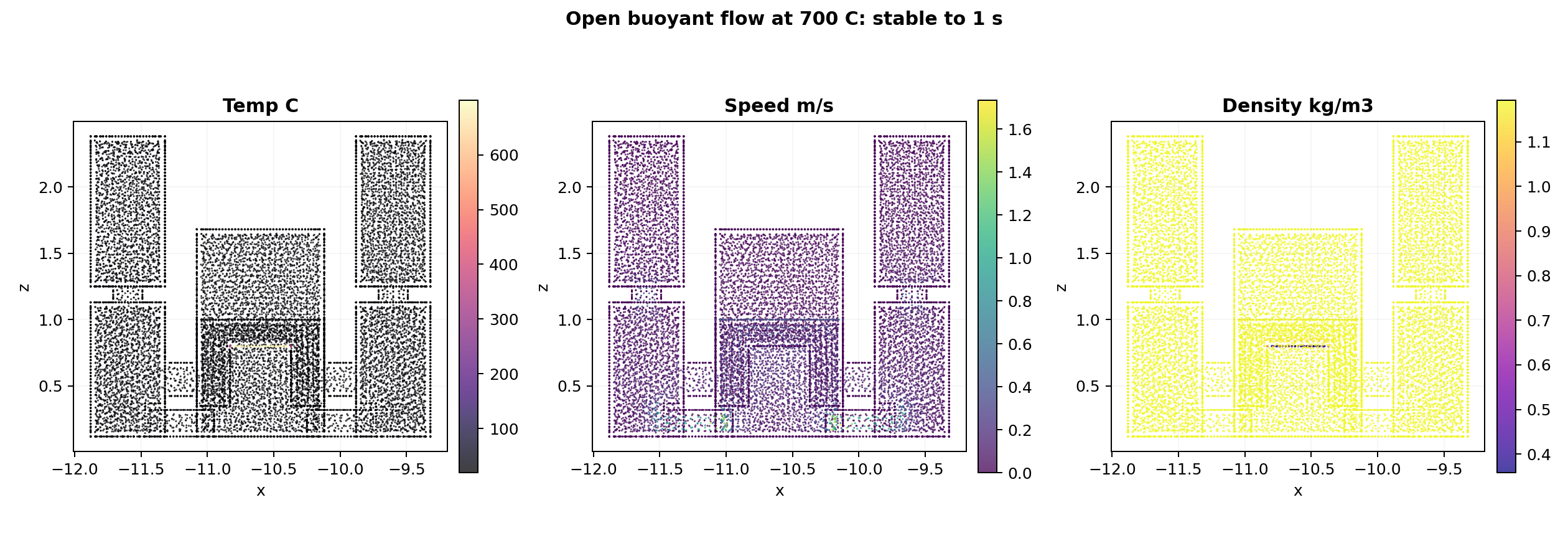

Buoyancy

blockedp_rgh pressure crash

Temperature ramp

Temperature ramp CFD result

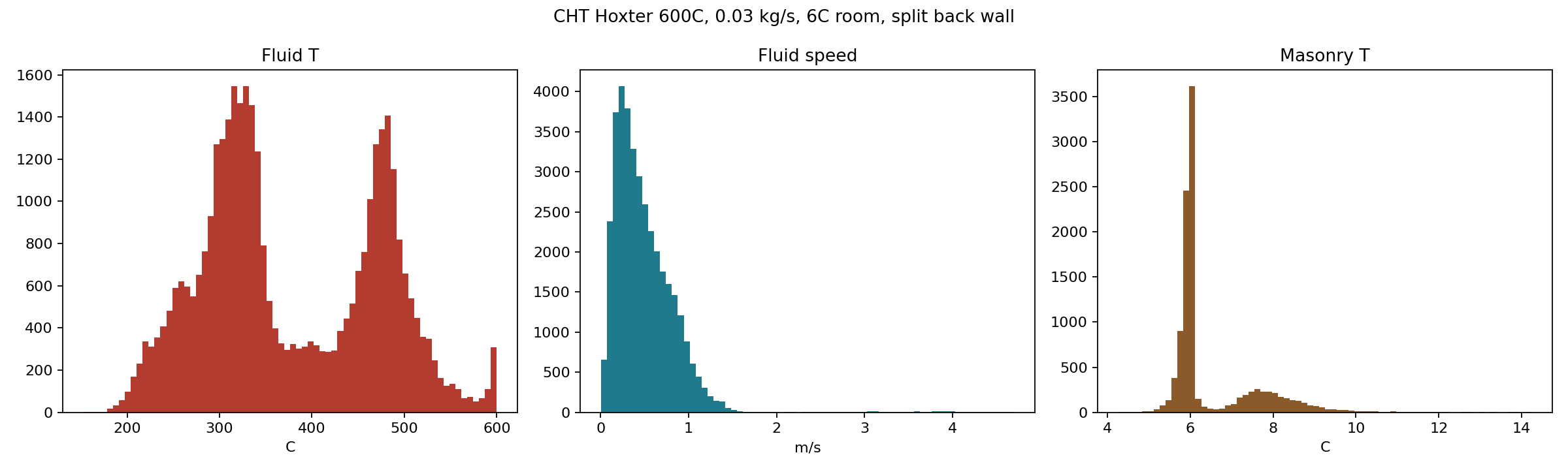

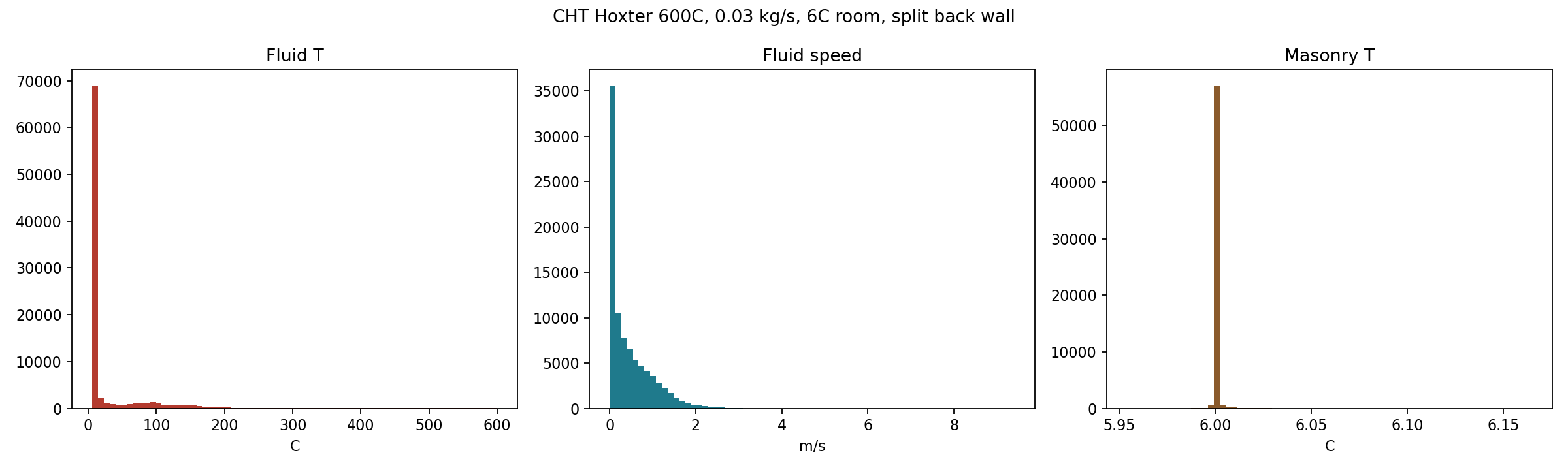

Ramp summary

Temperature ramp summary

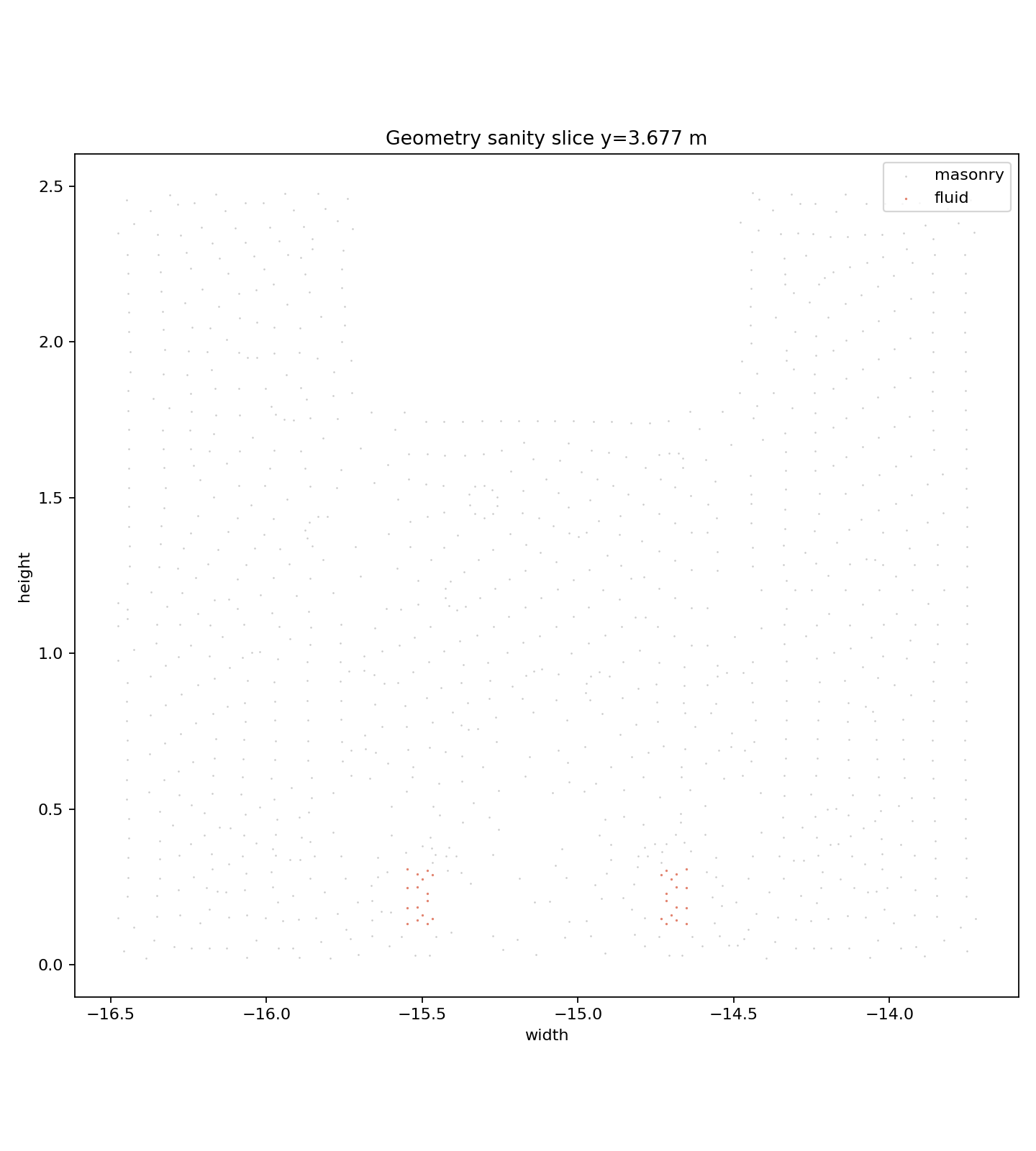

What this says

  • The gas volume is connected and solvable.
  • The lower collector/path is the fastest active route.
  • Both side towers participate in the preview flow.
  • Left/right balance is acceptable for a first geometry pass, around 10% mean-speed delta.

What is still missing

  • Buoyant hot gas is not stable yet.
  • The buoyancy attempt collapses timestep near 0.00038 s and fails in correctBuoyantPressure.

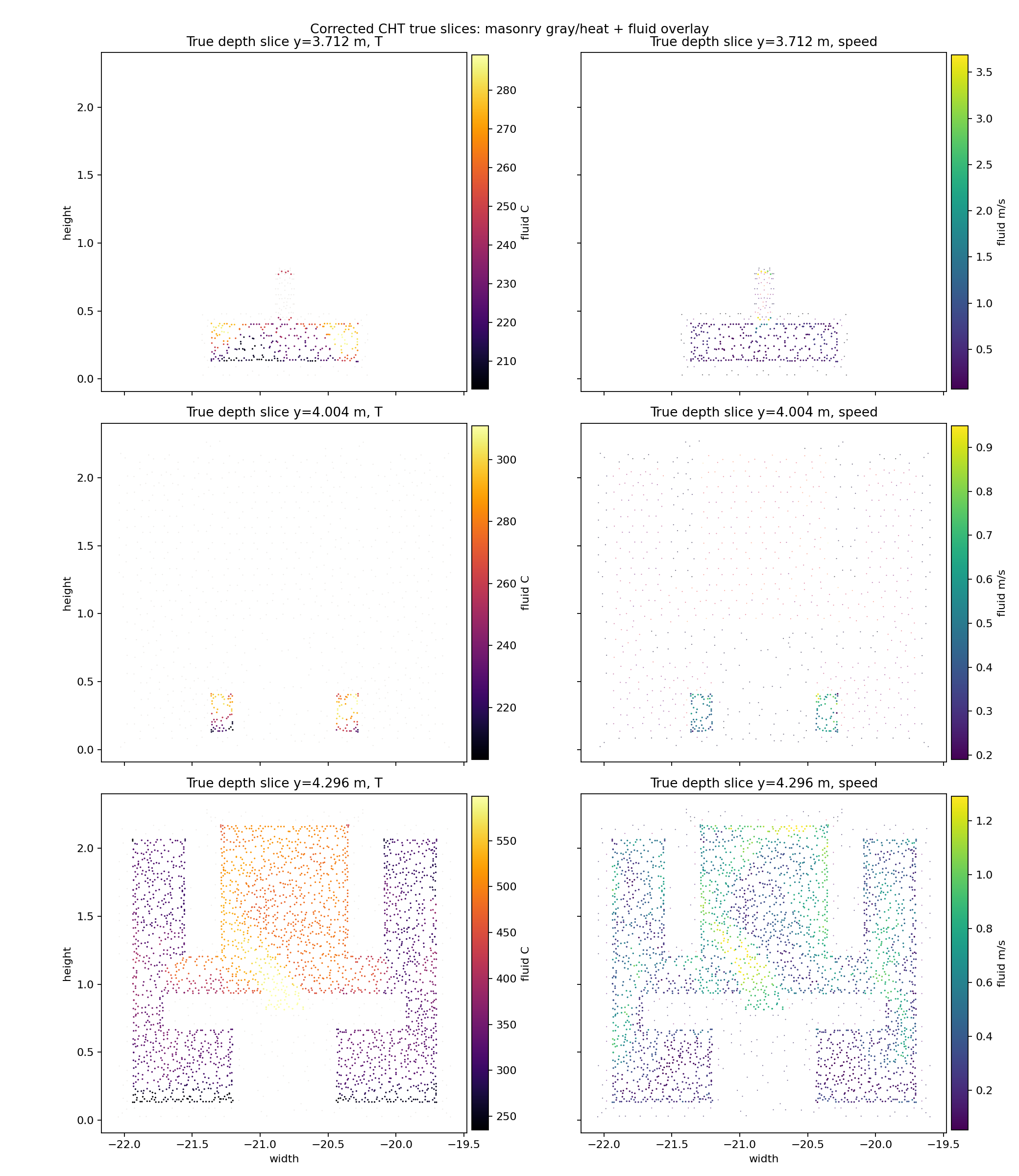

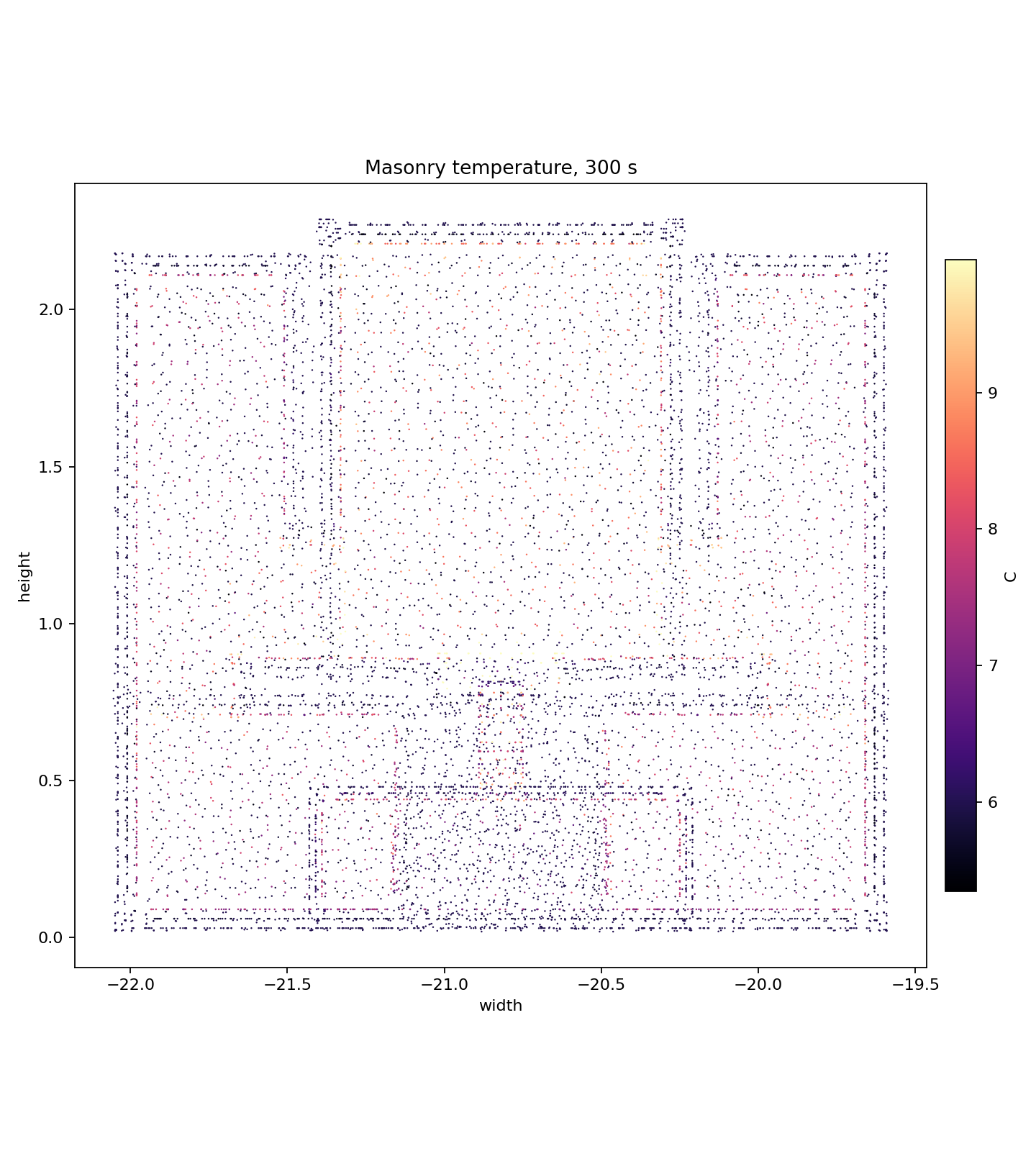

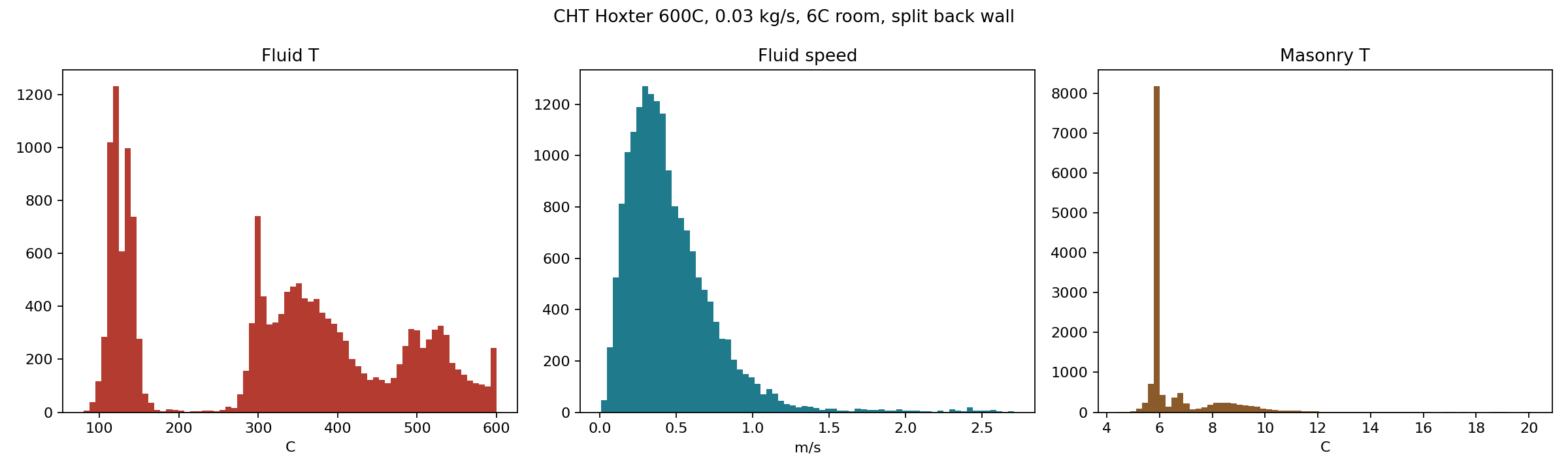

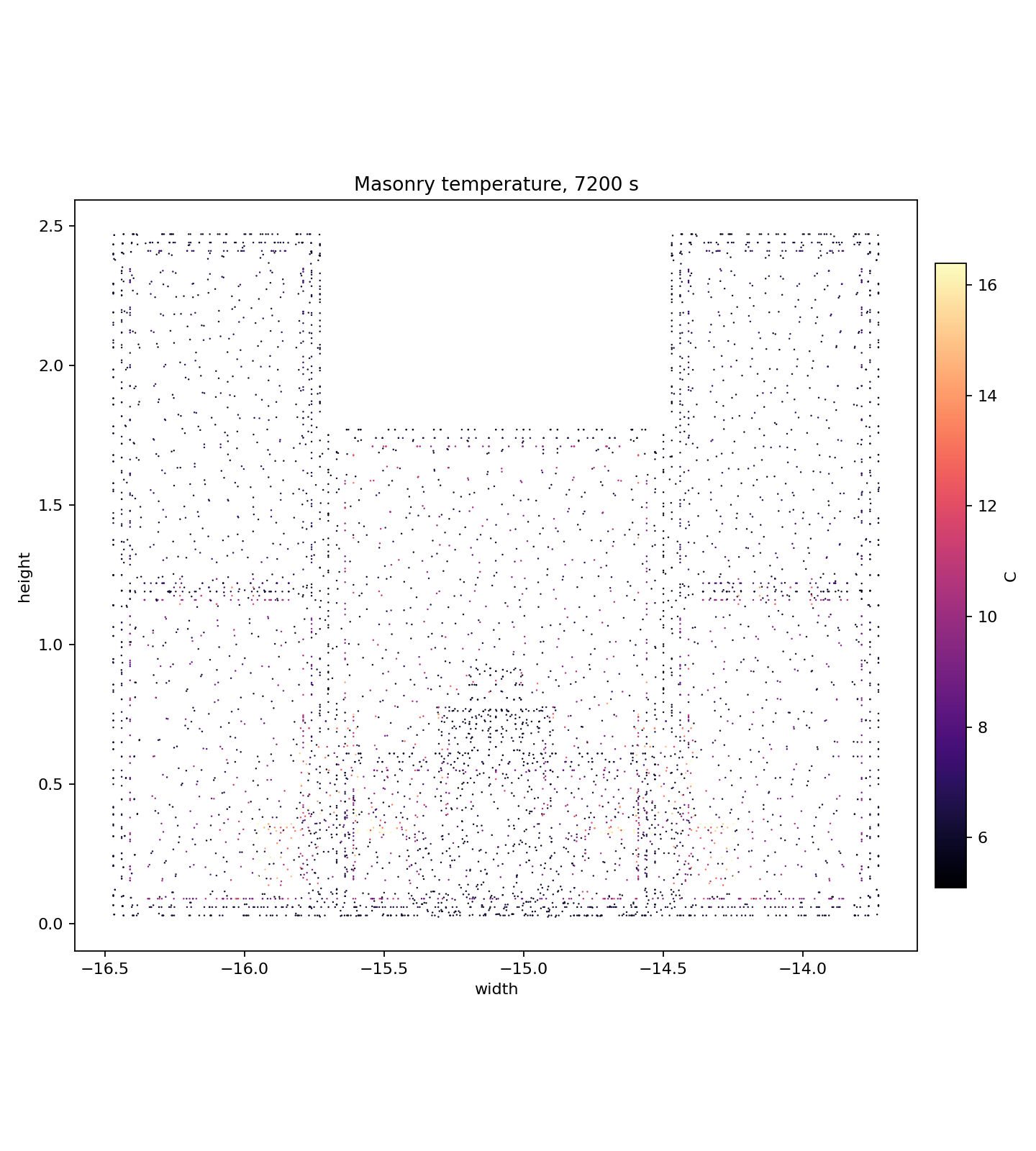

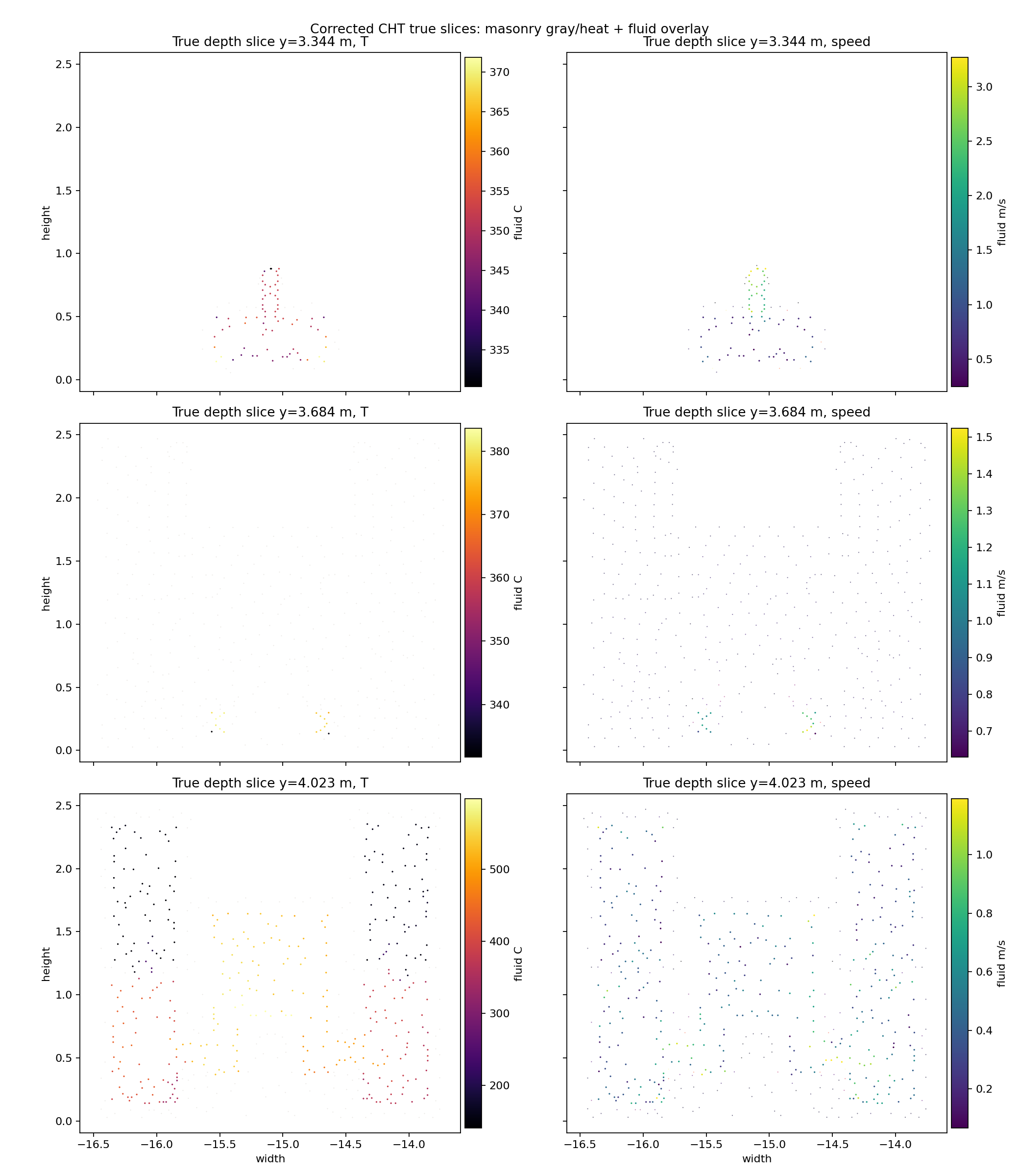

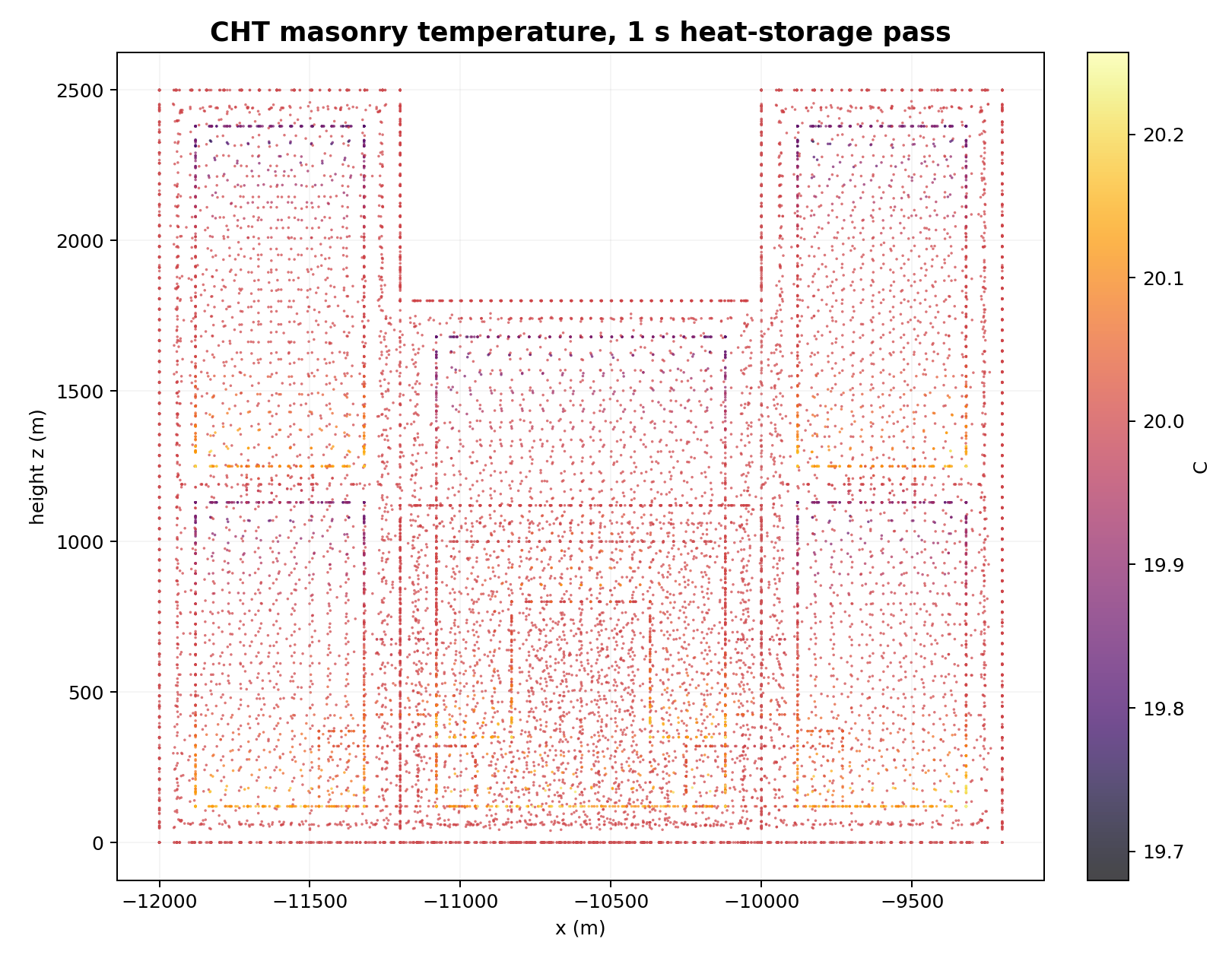

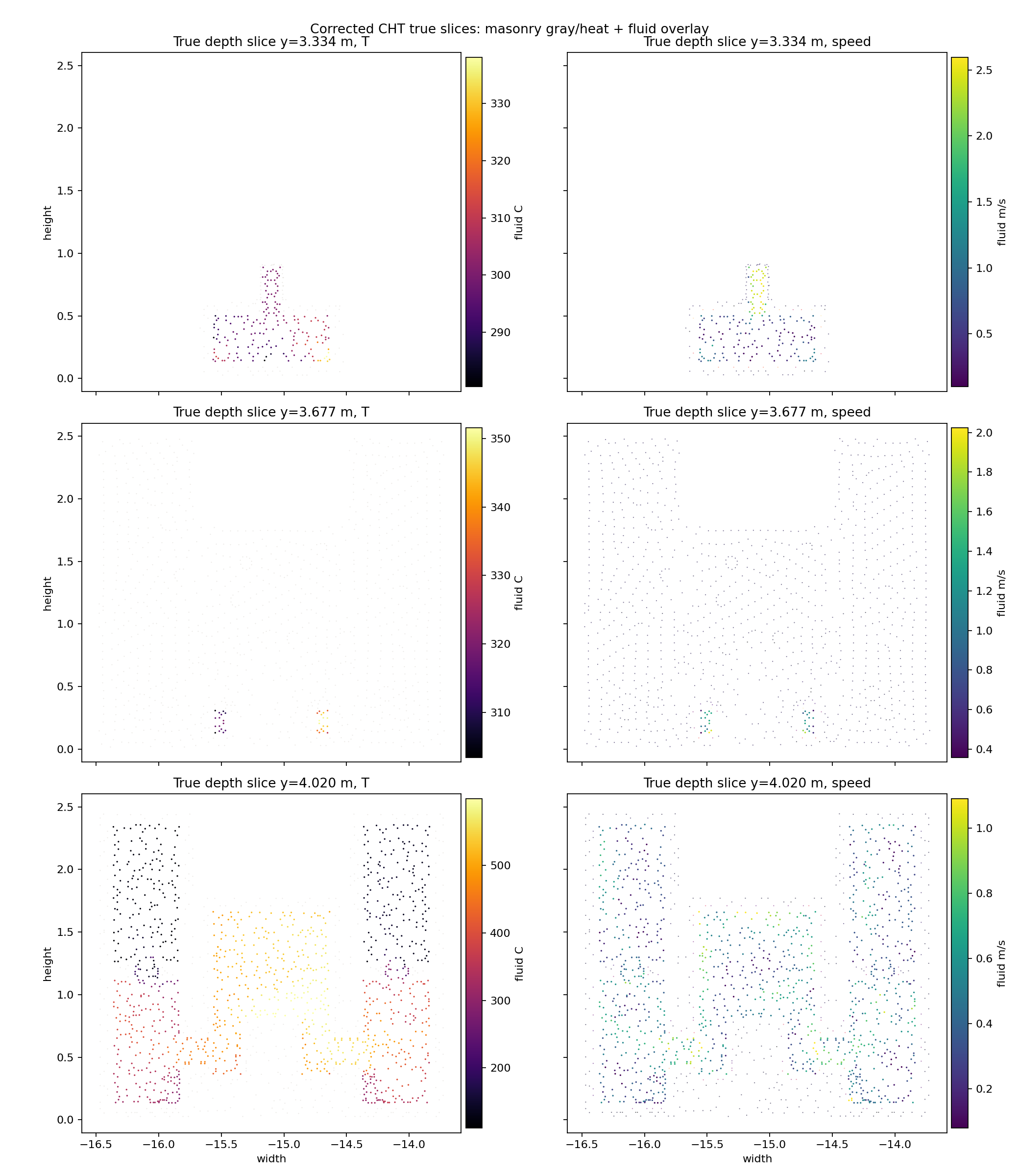

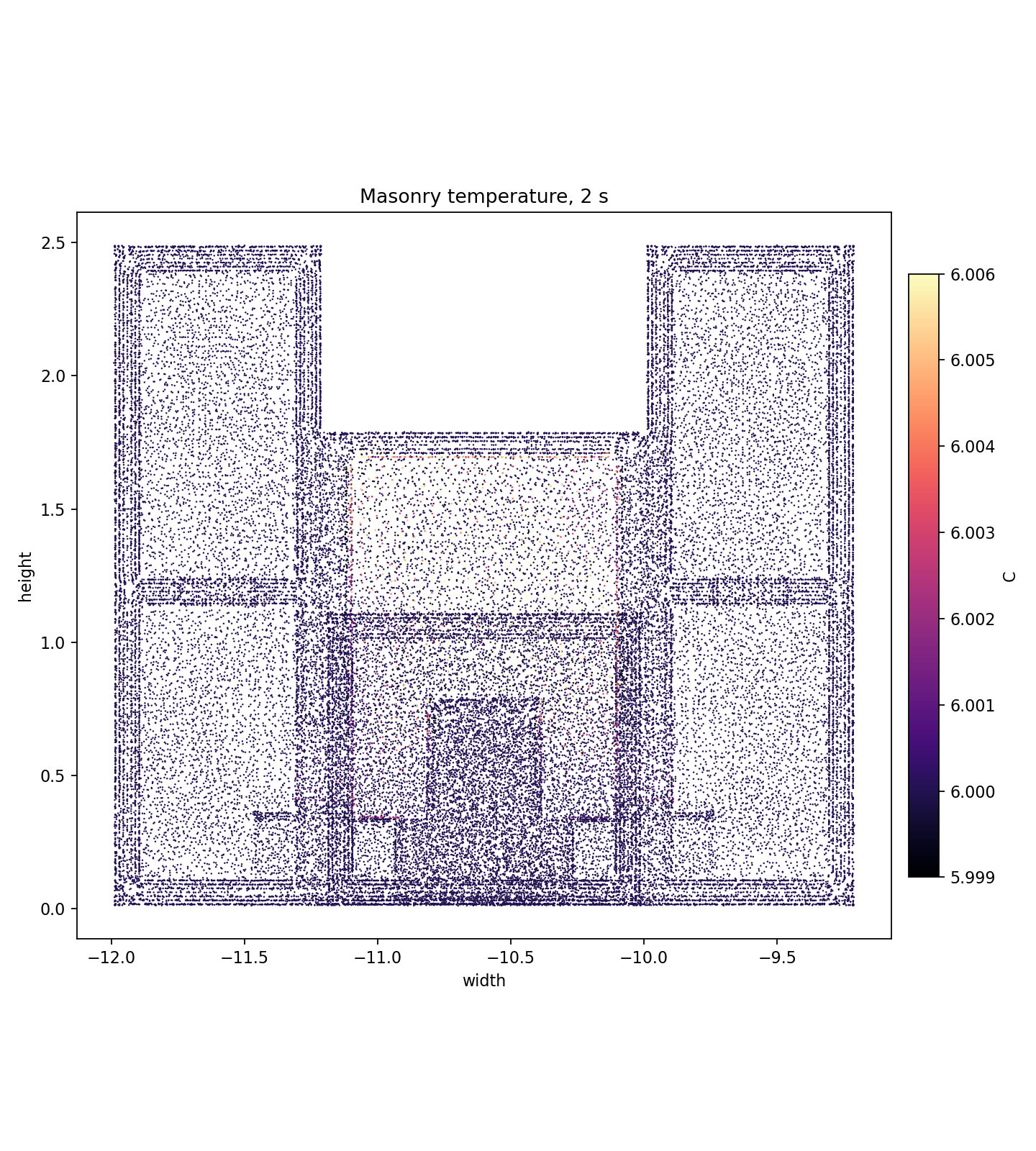

  • This is not masonry heat storage yet.

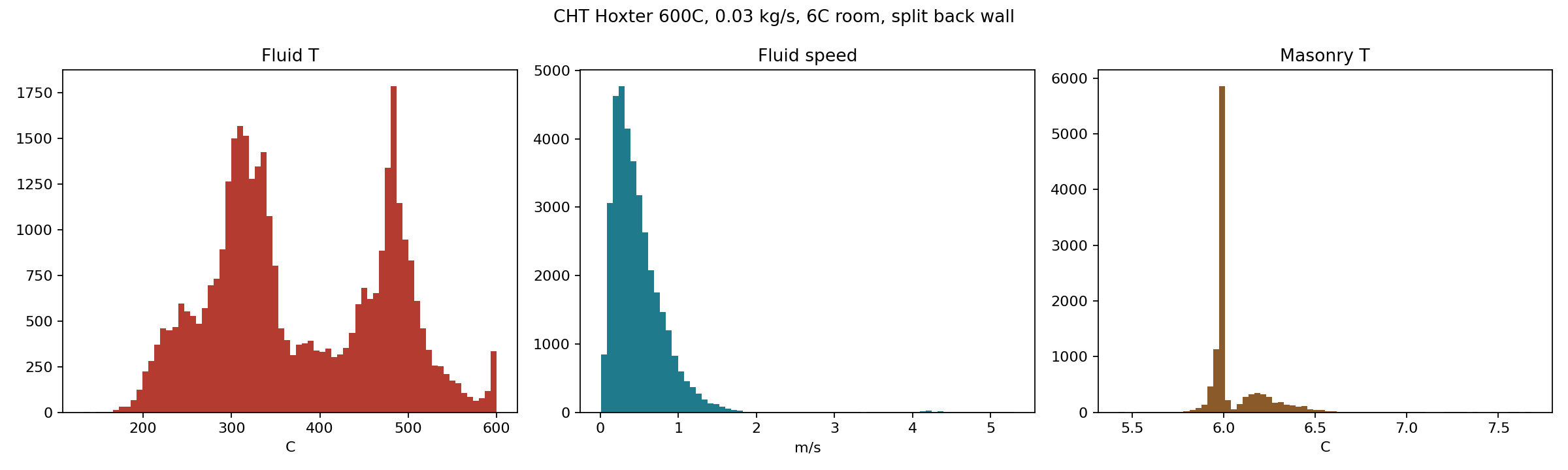

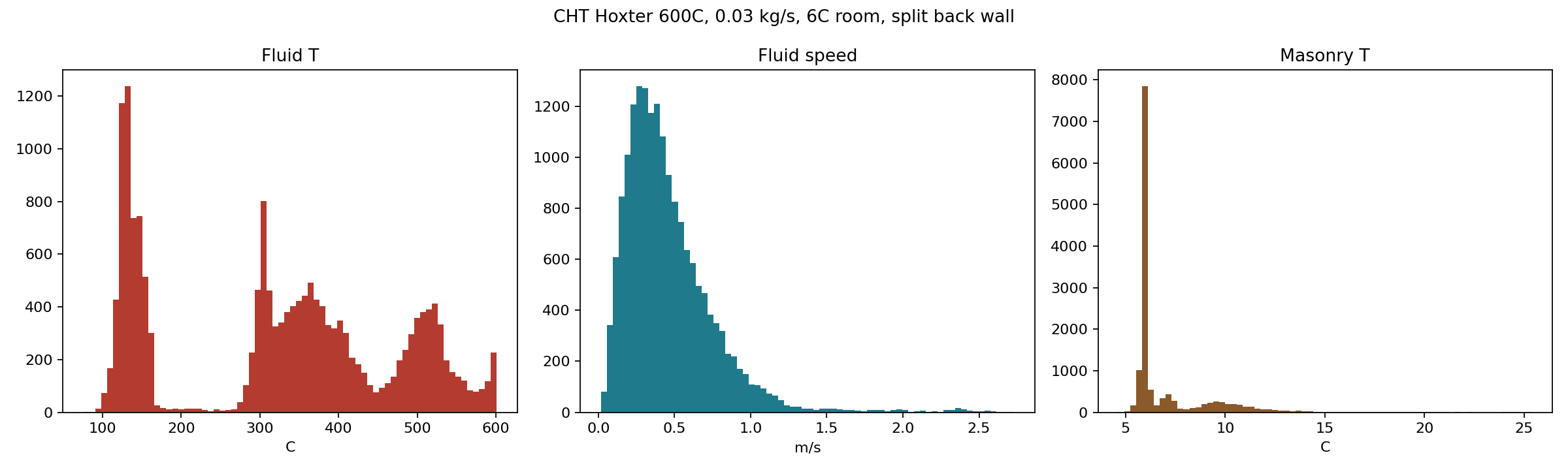

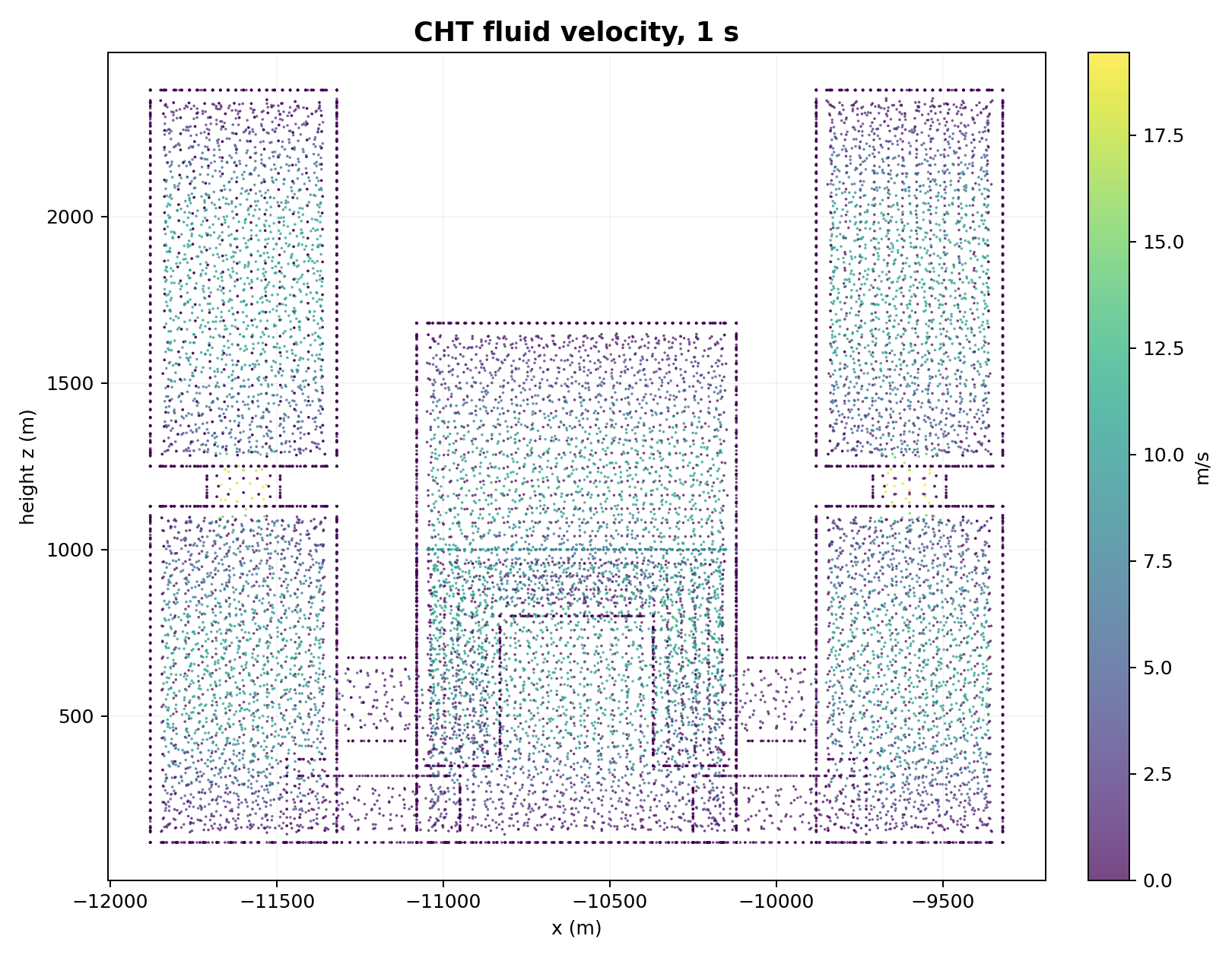

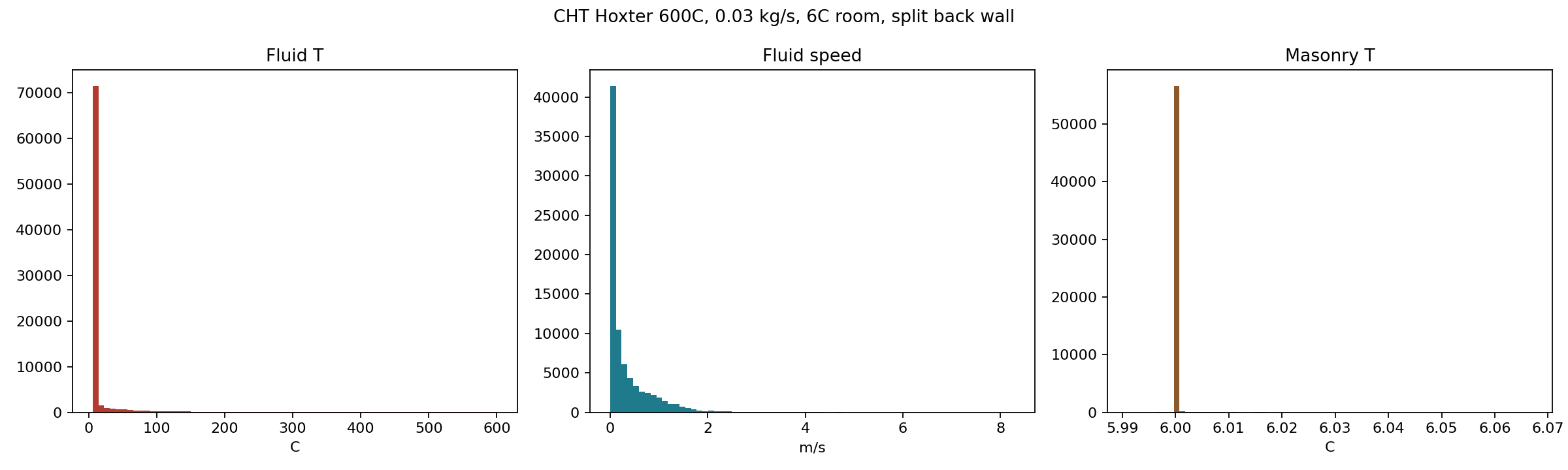

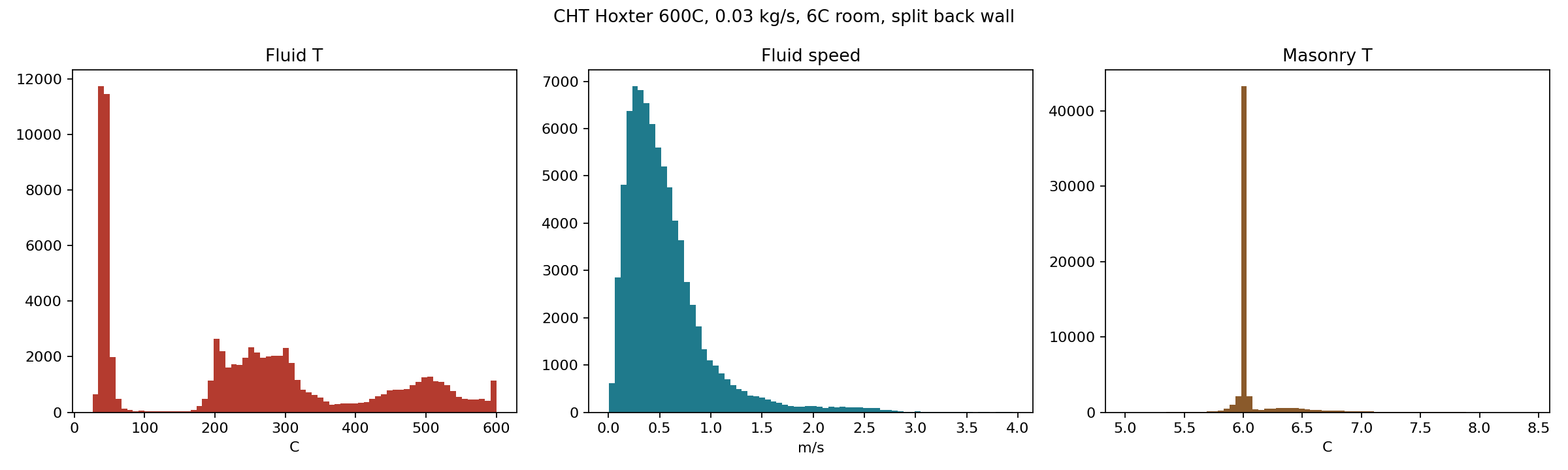

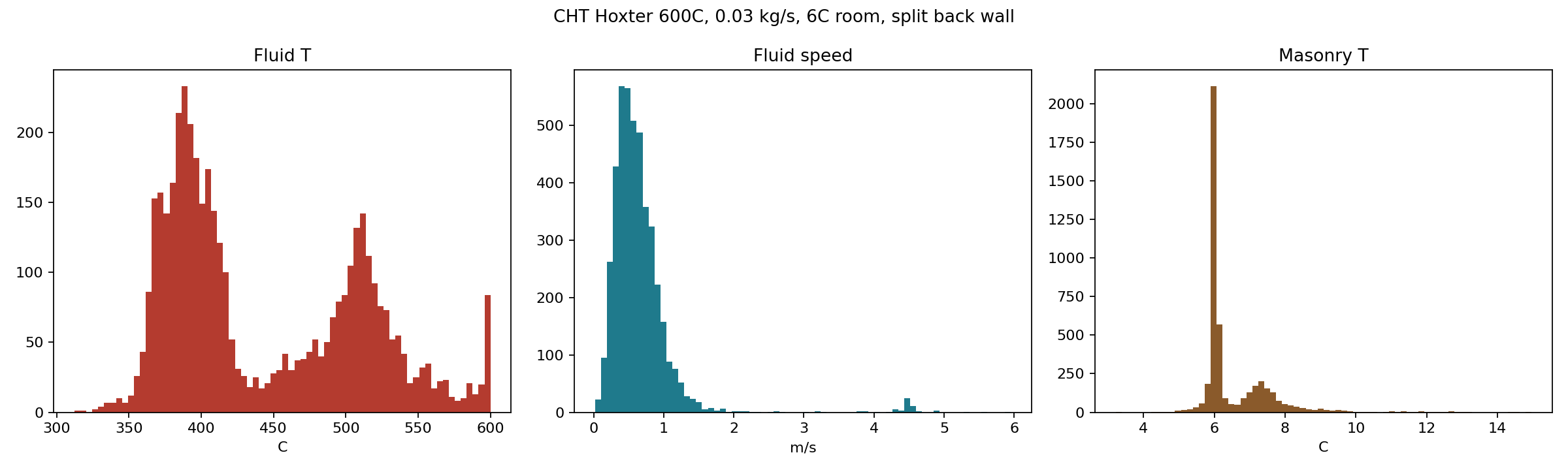

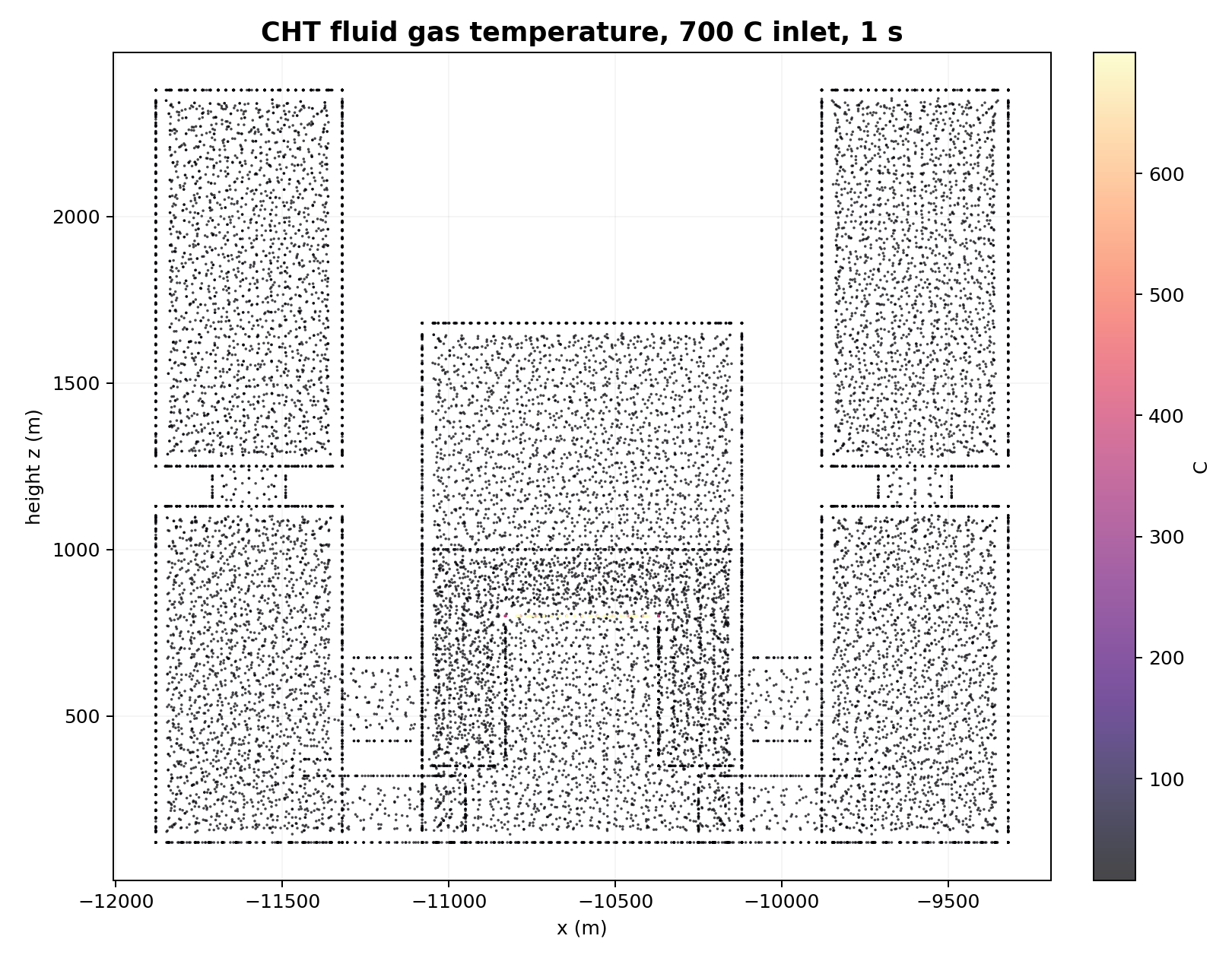

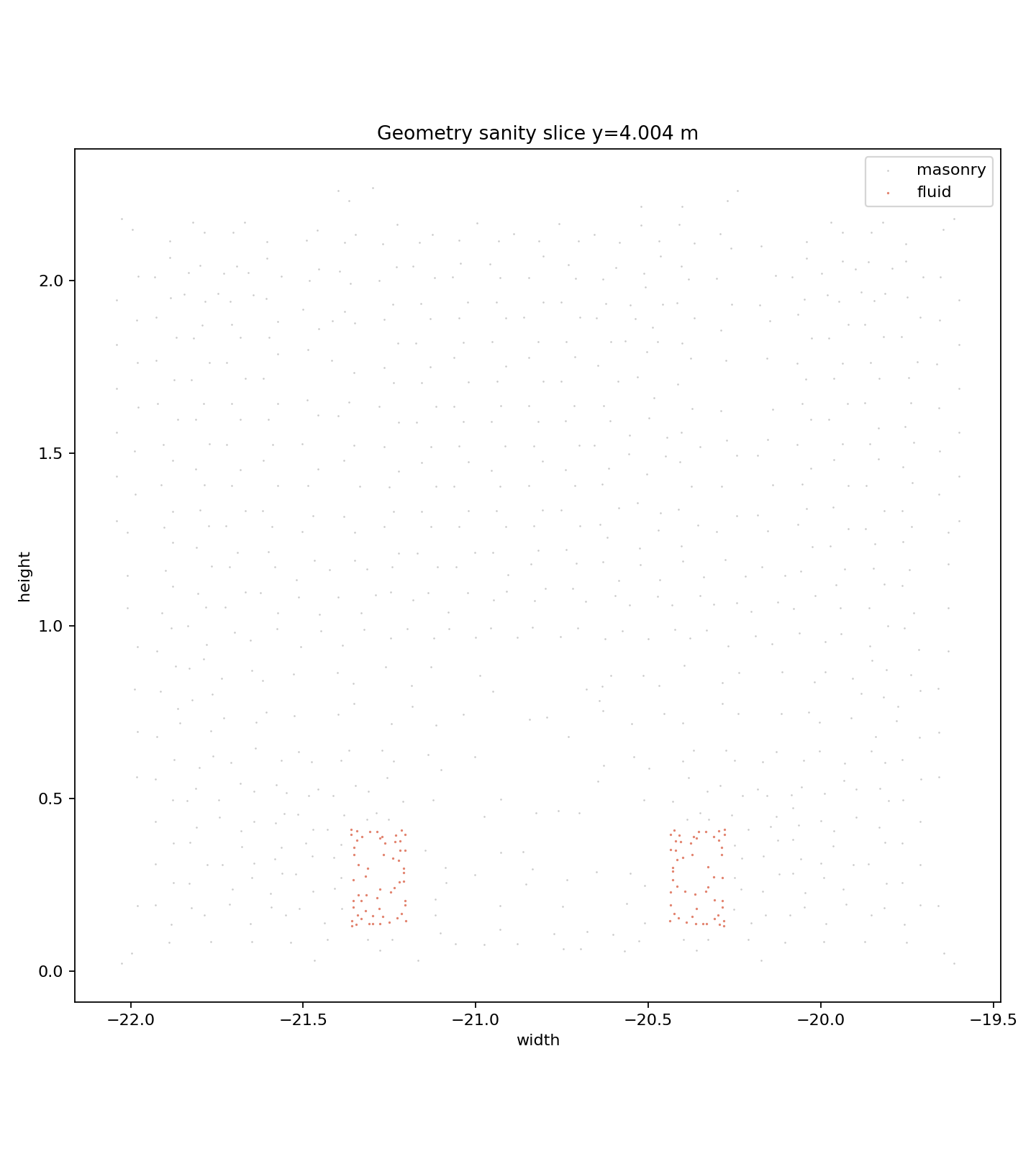

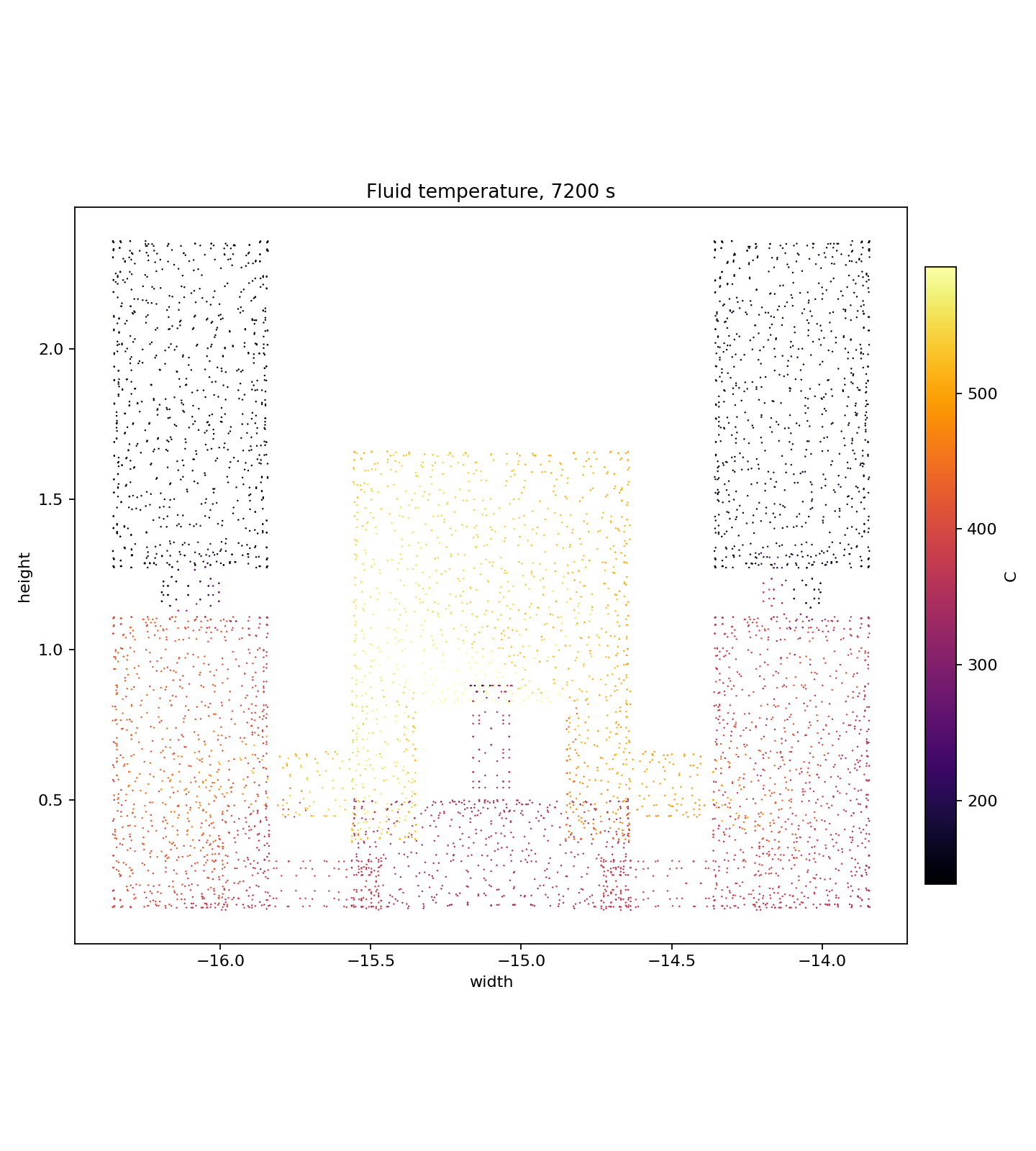

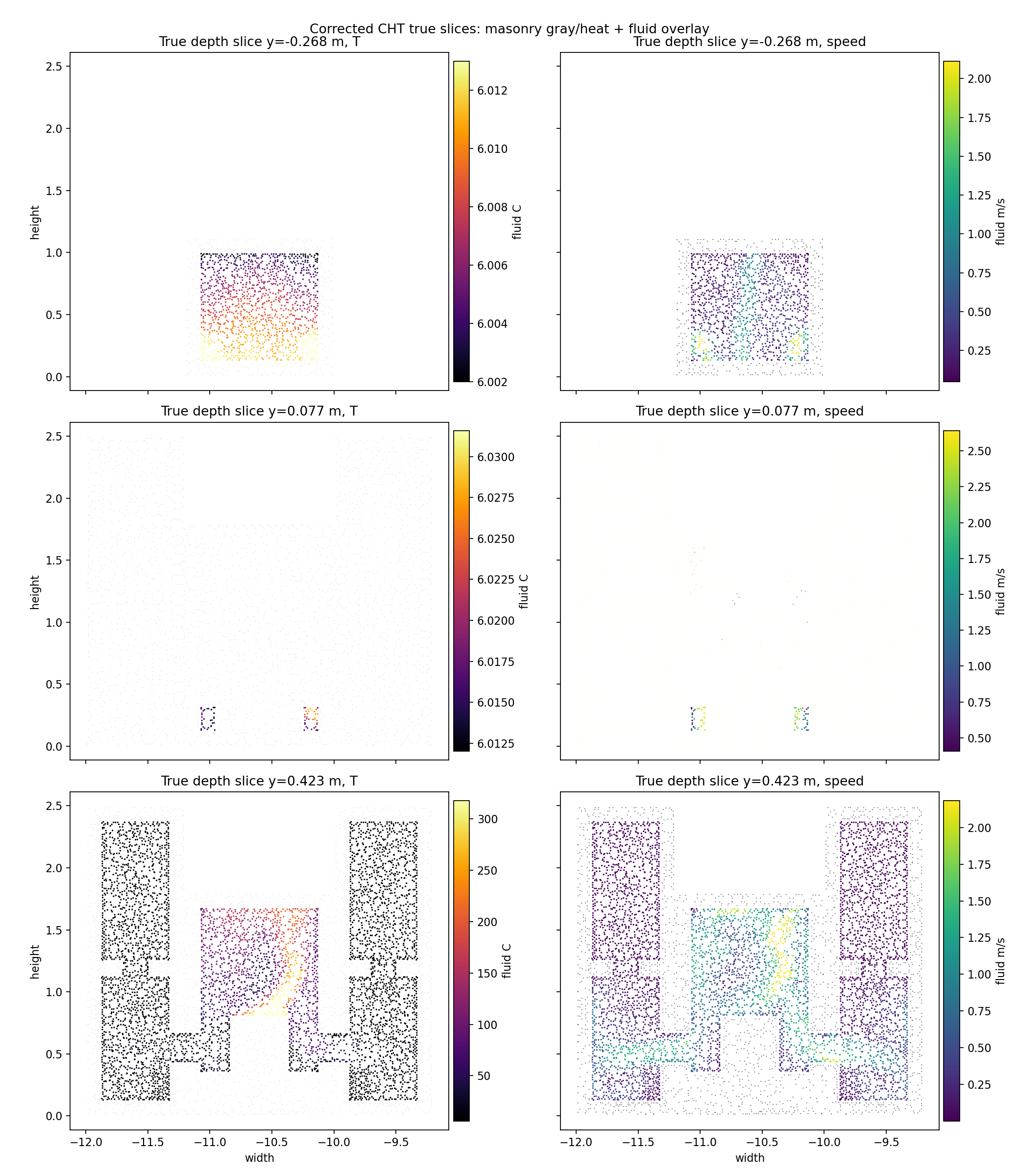

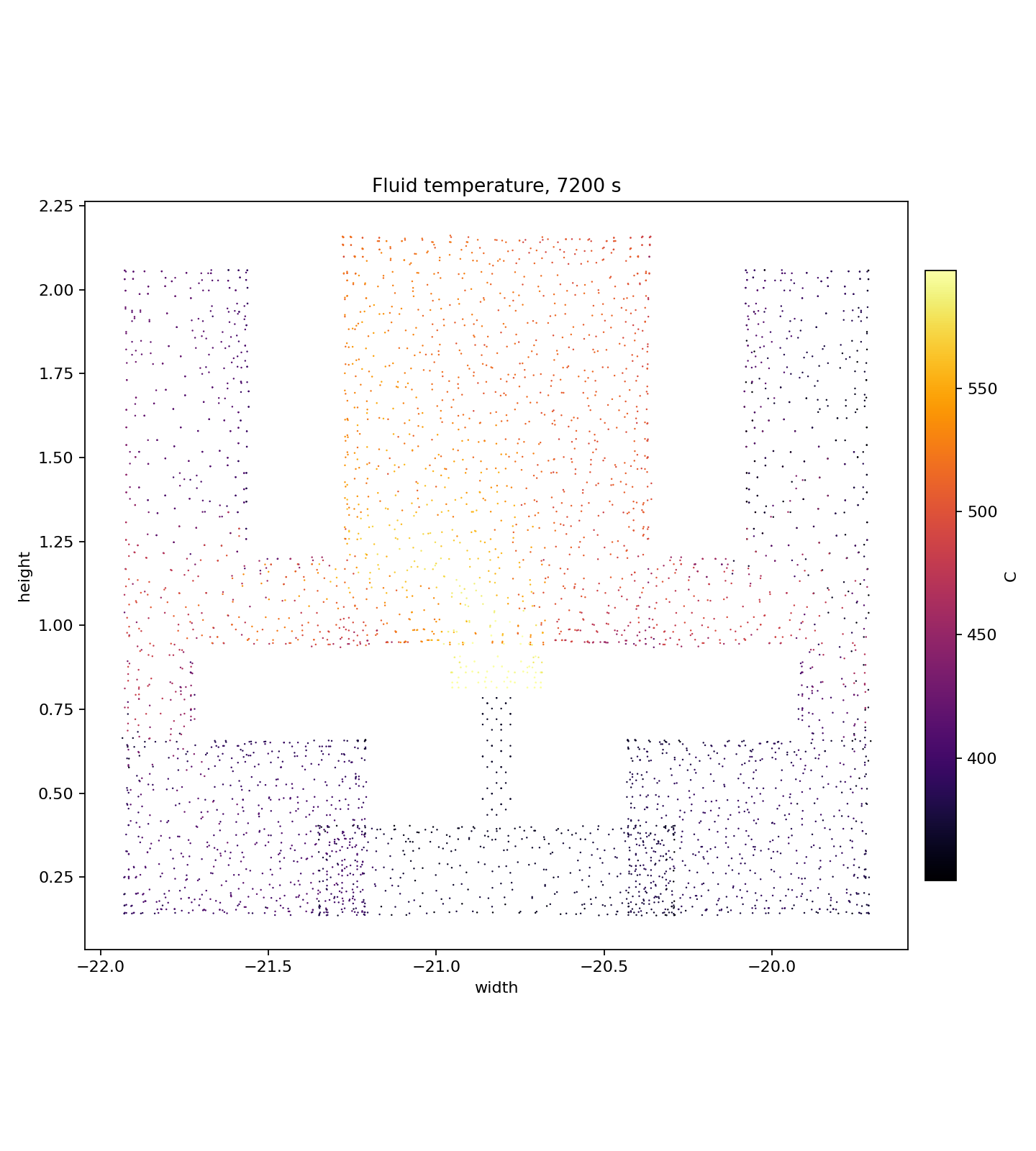

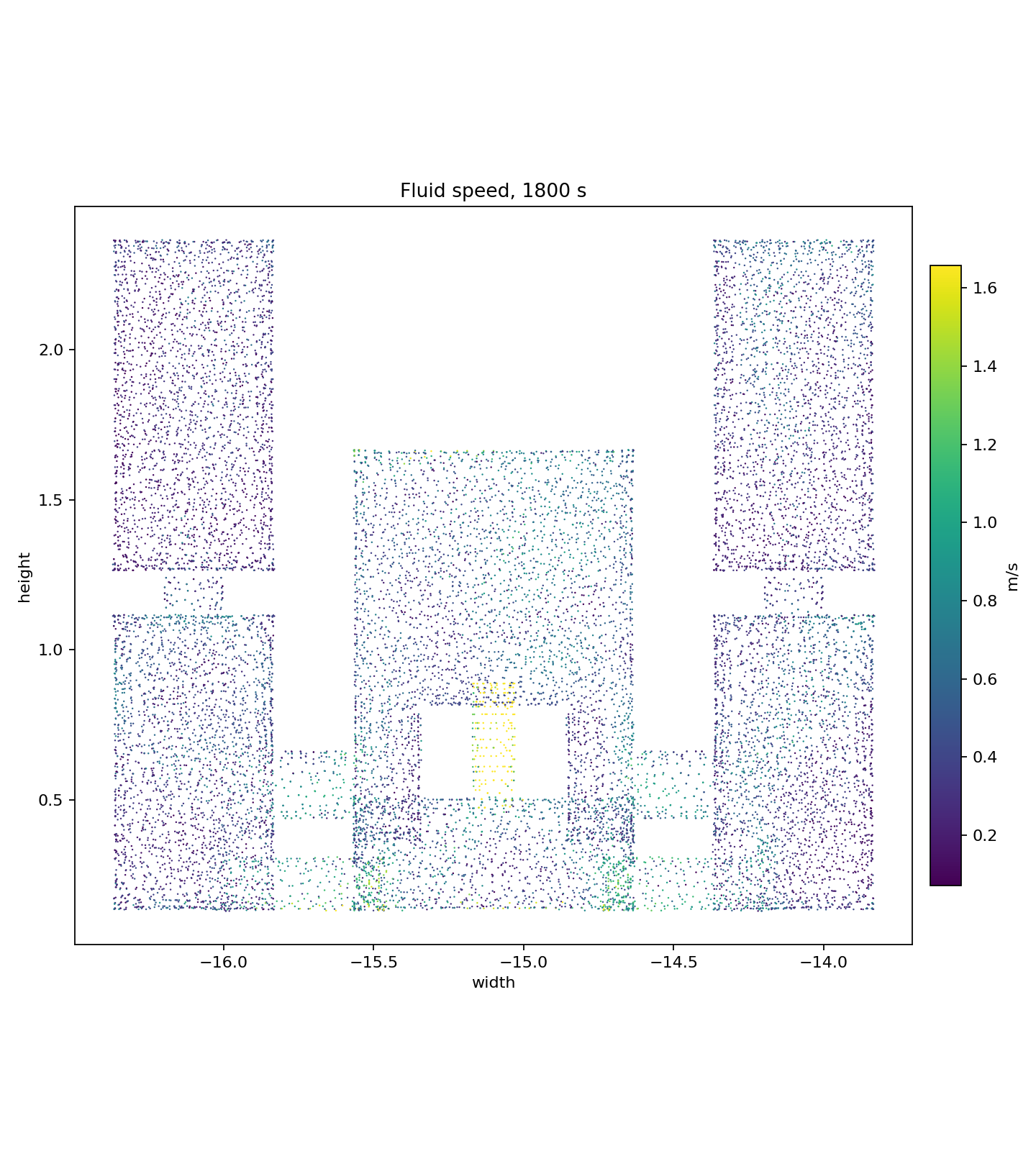

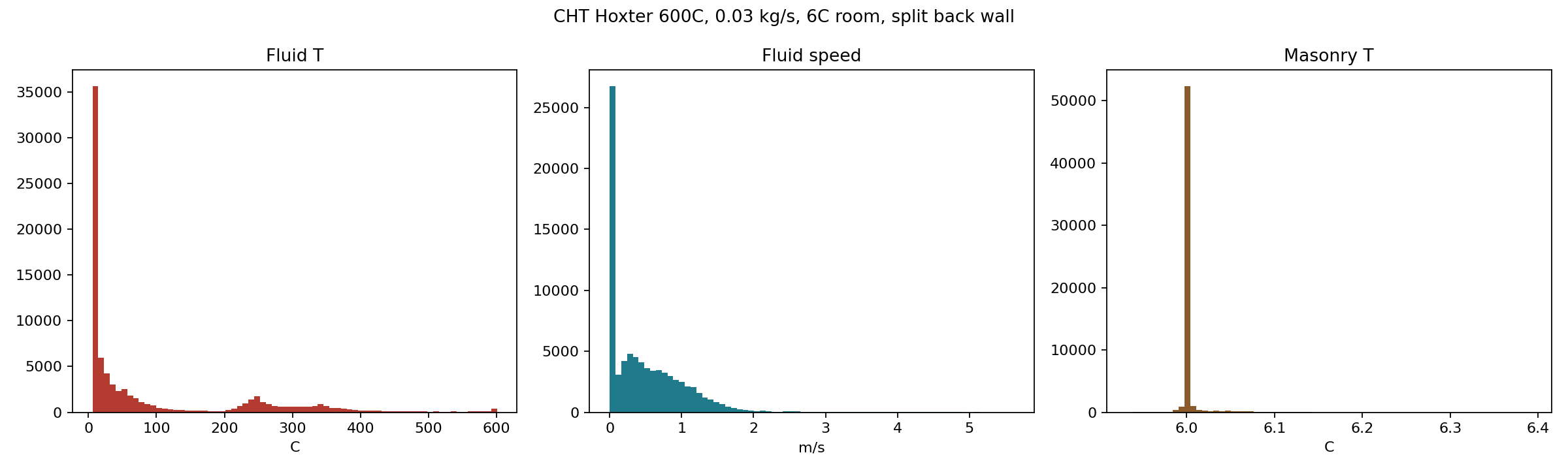

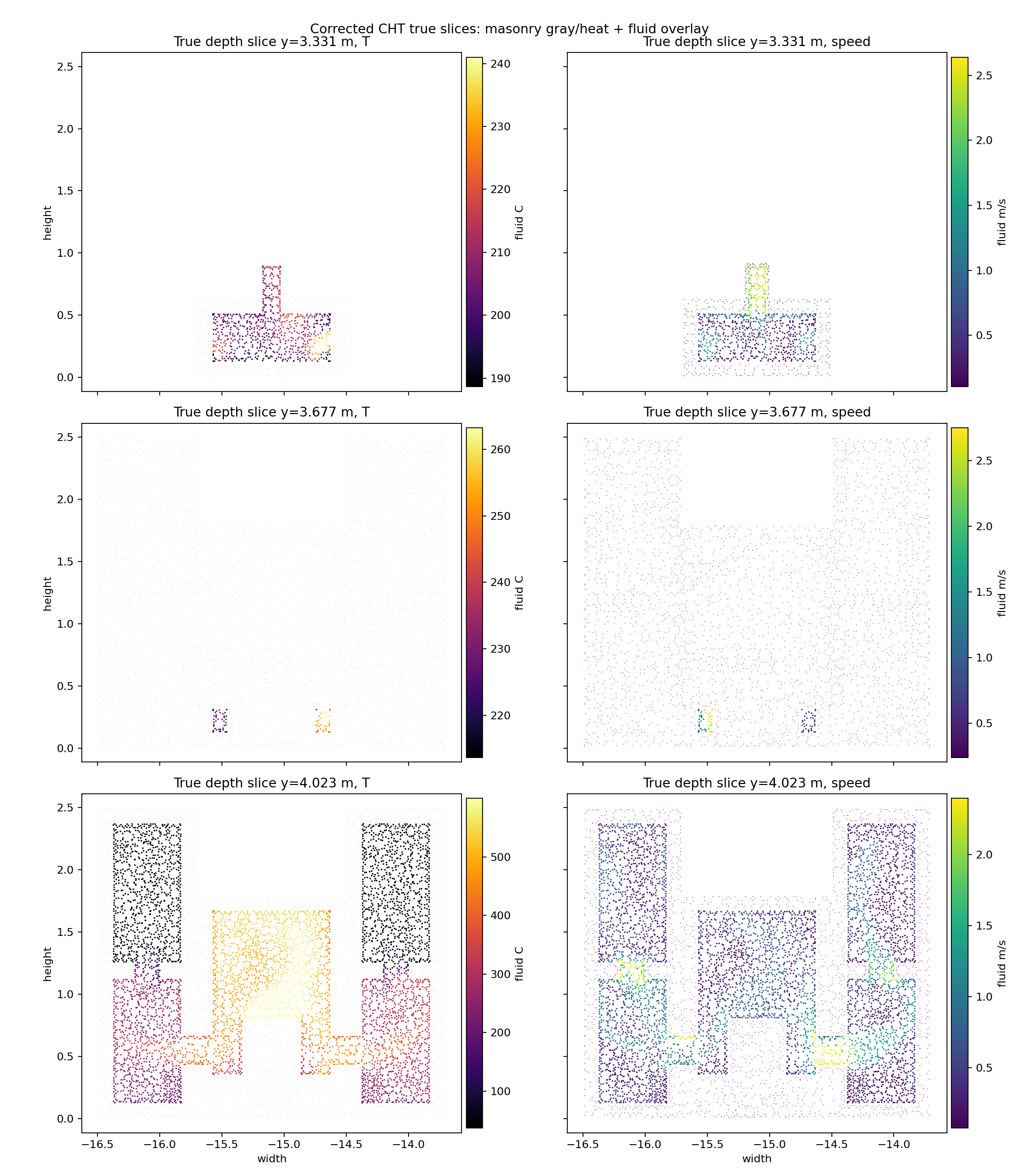

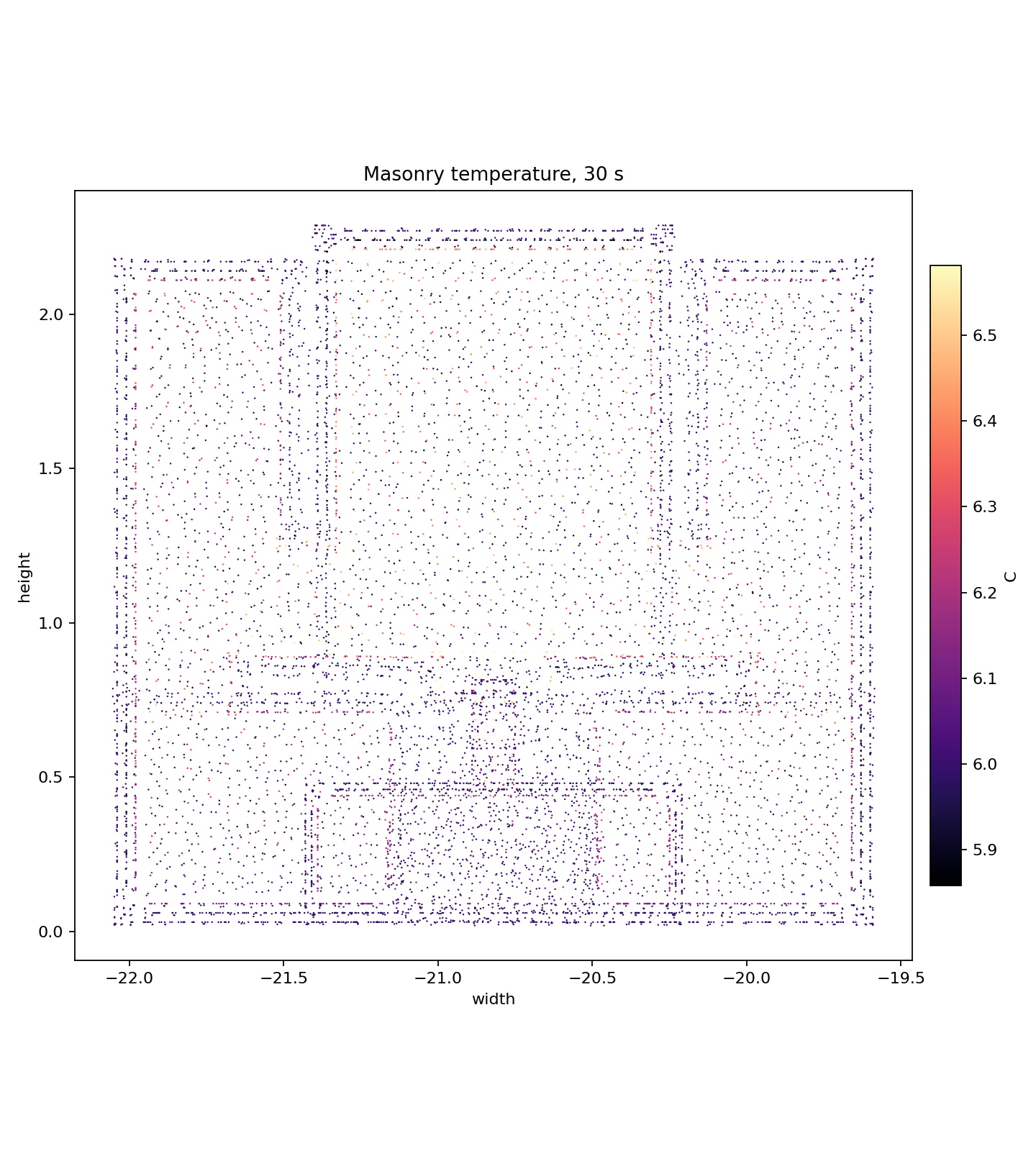

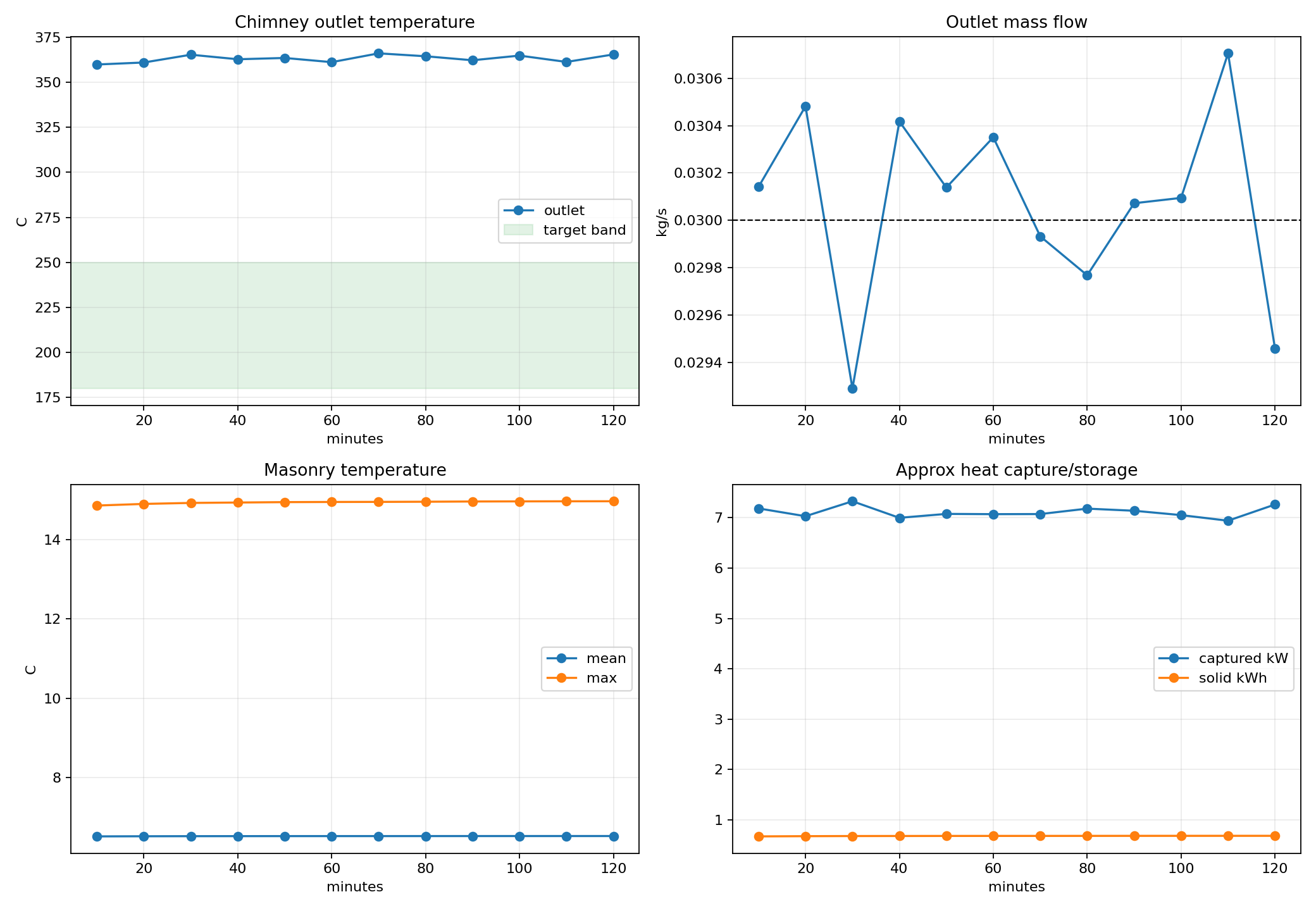

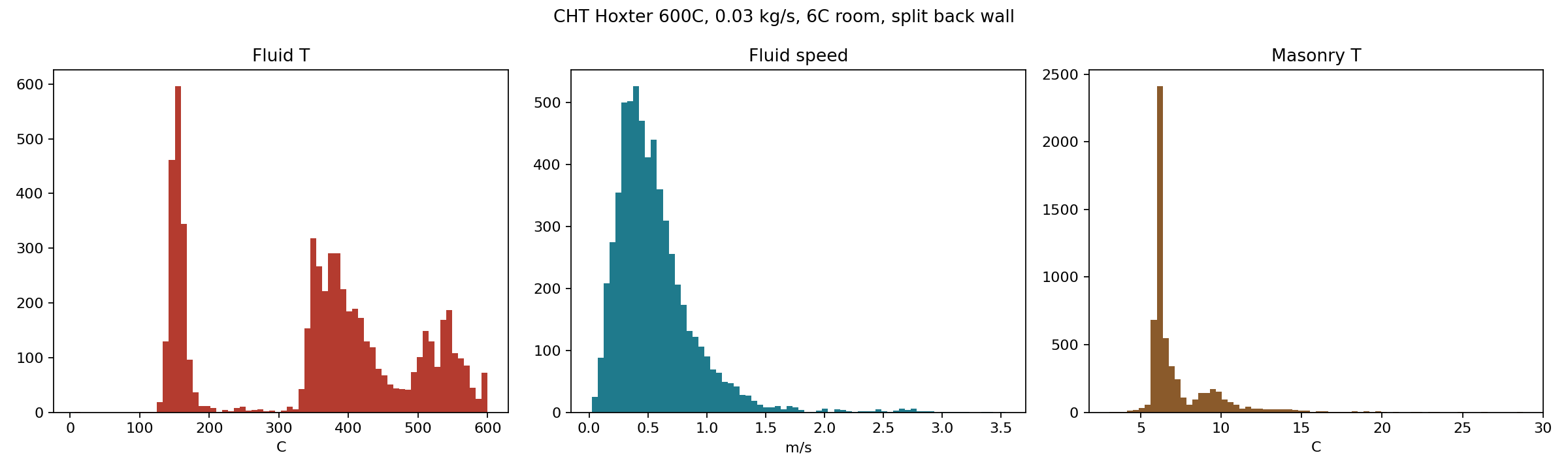

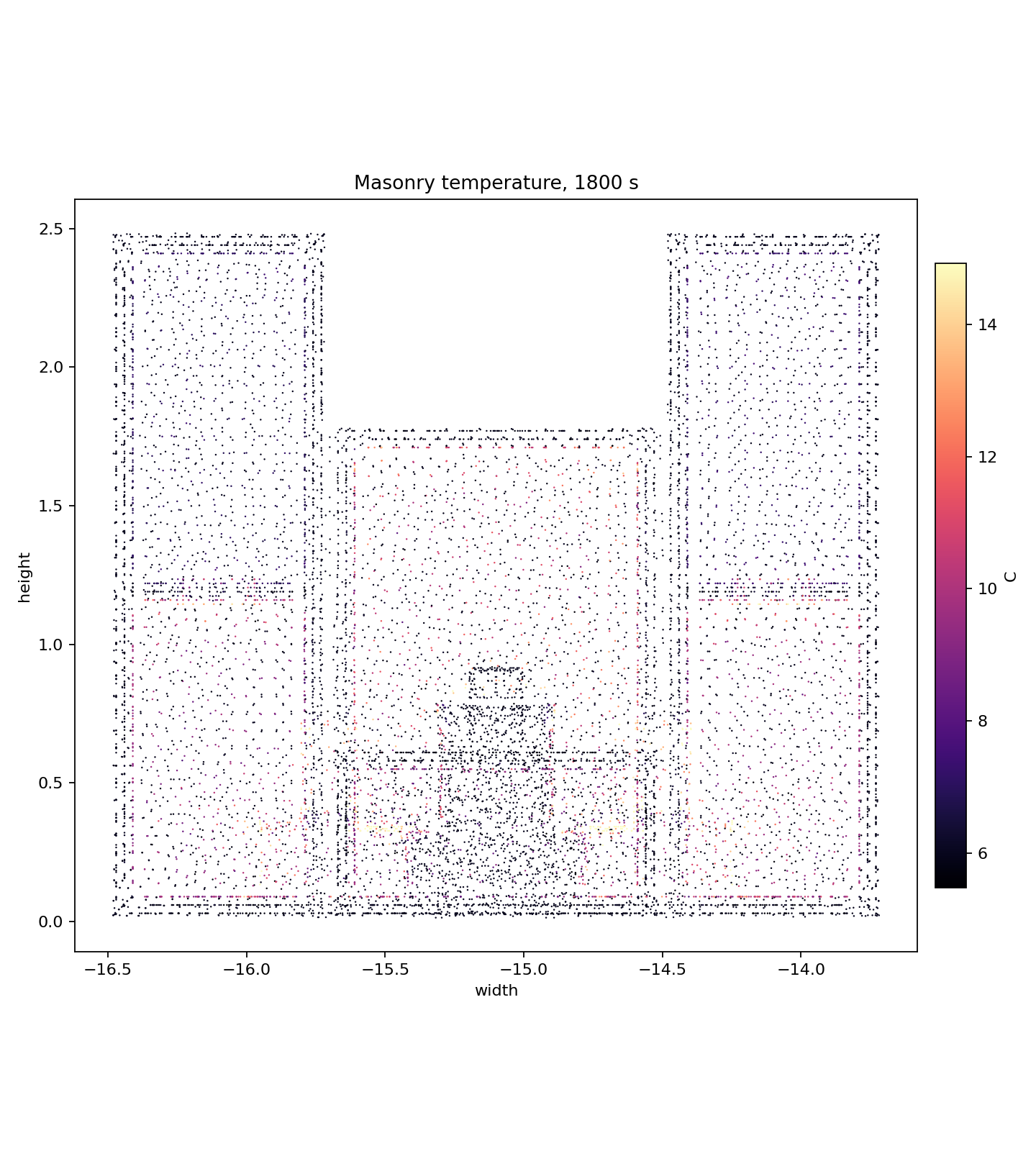

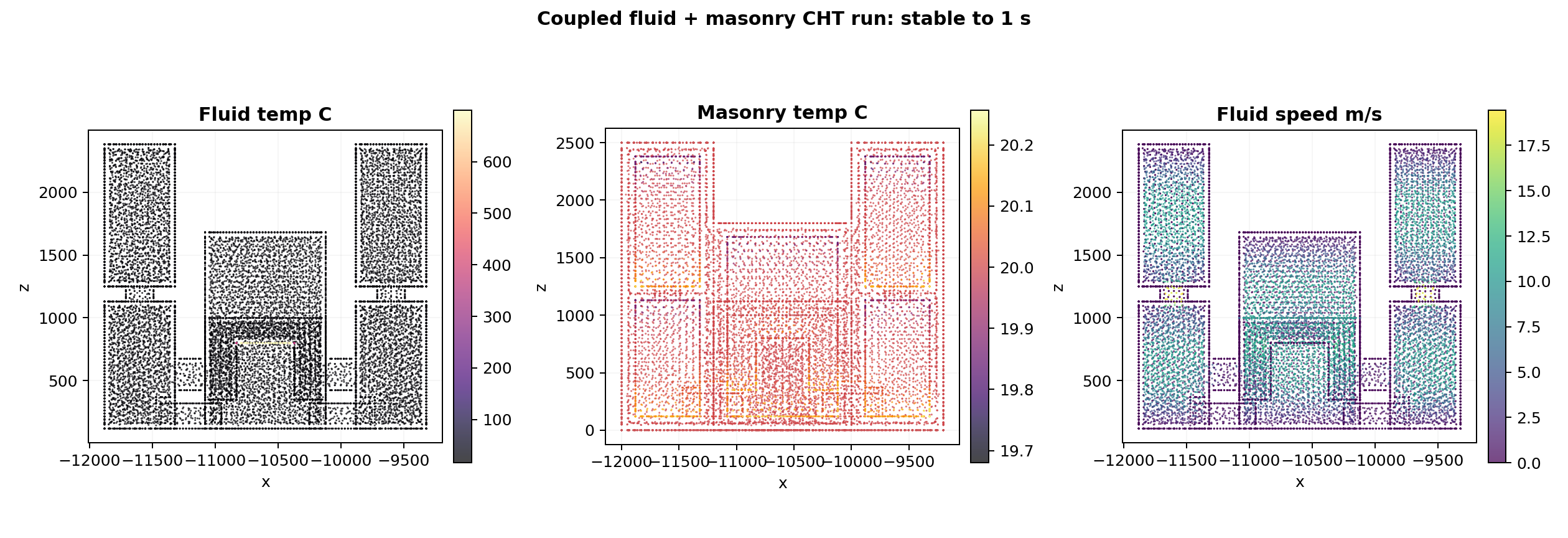

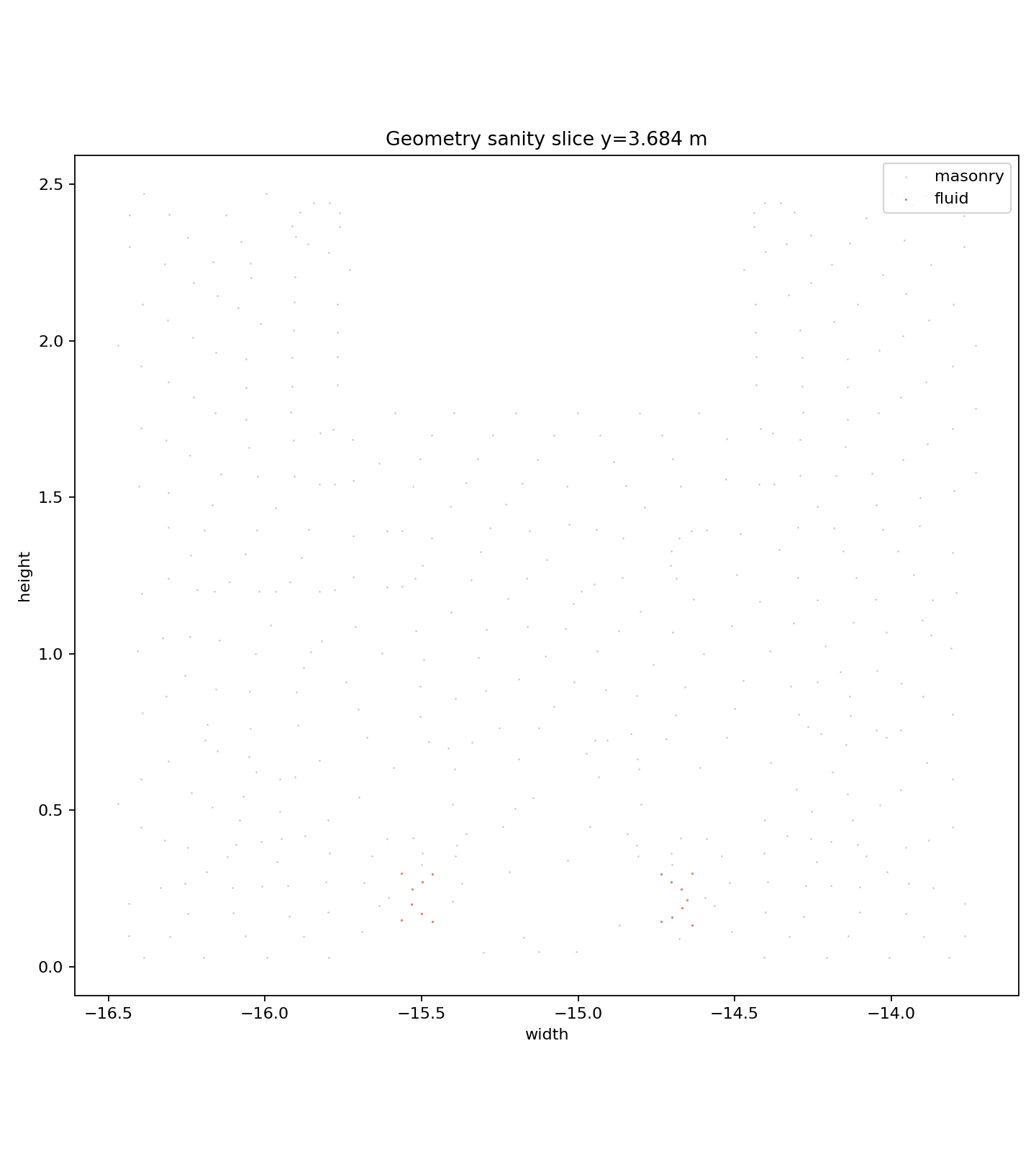

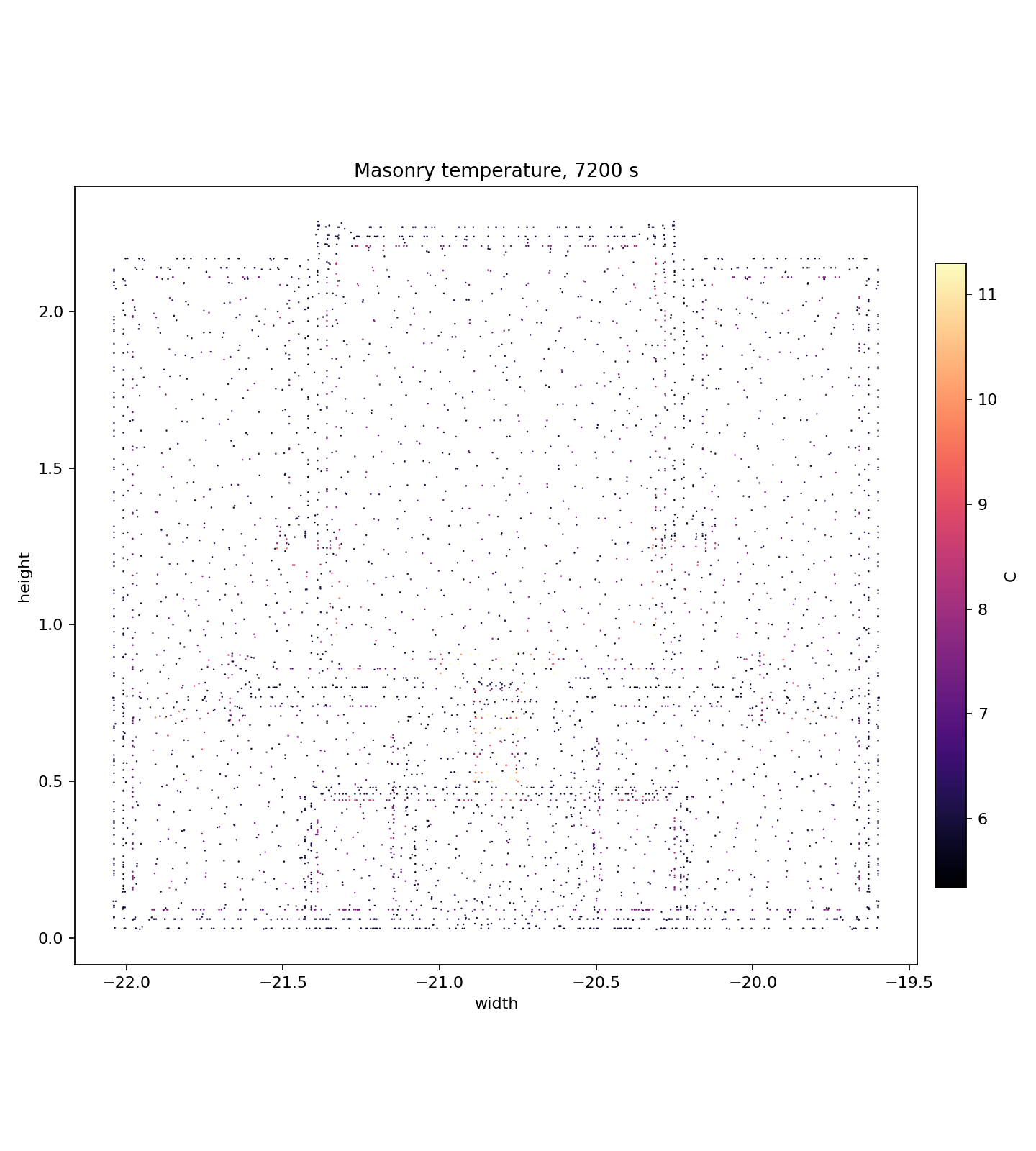

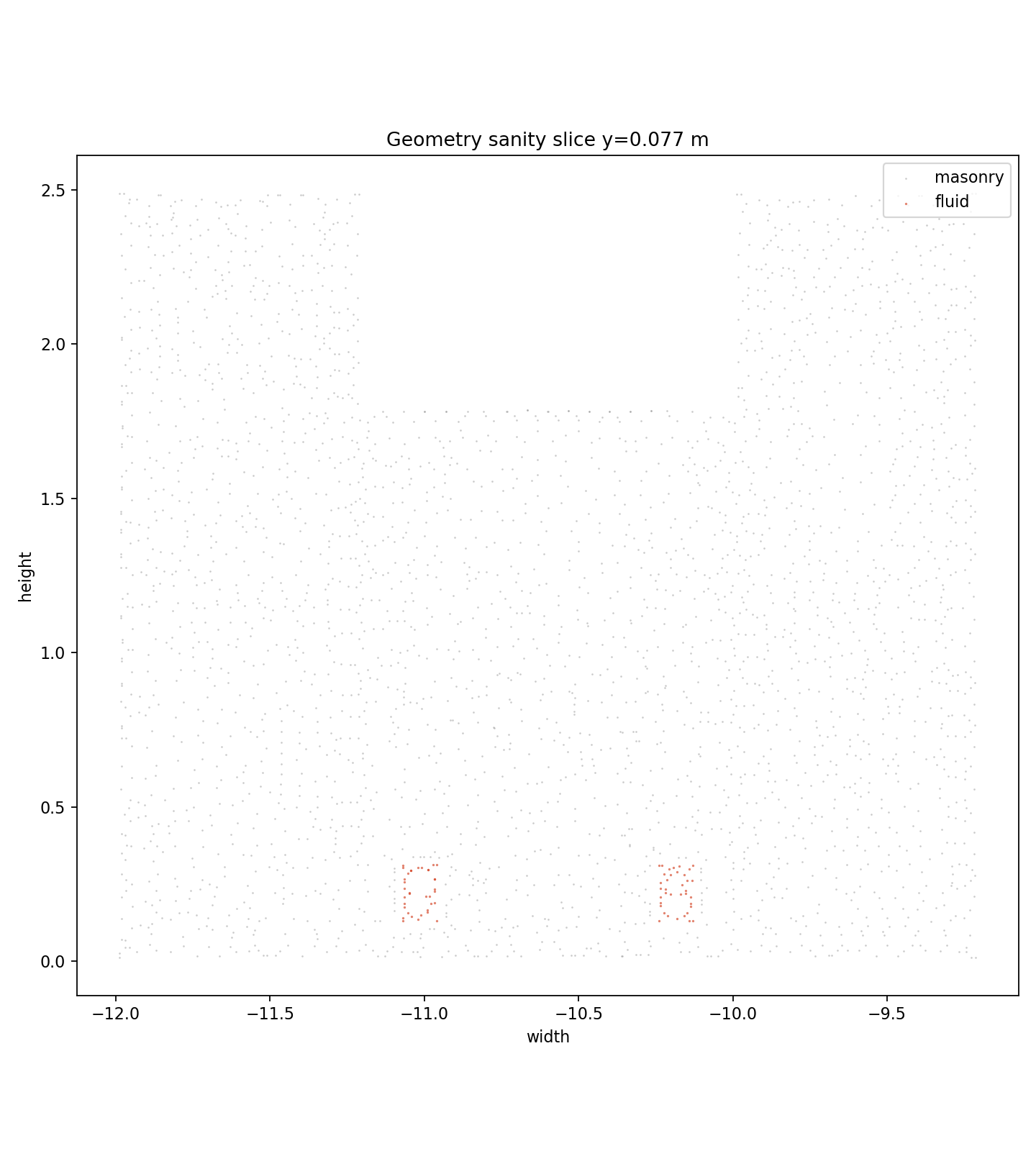

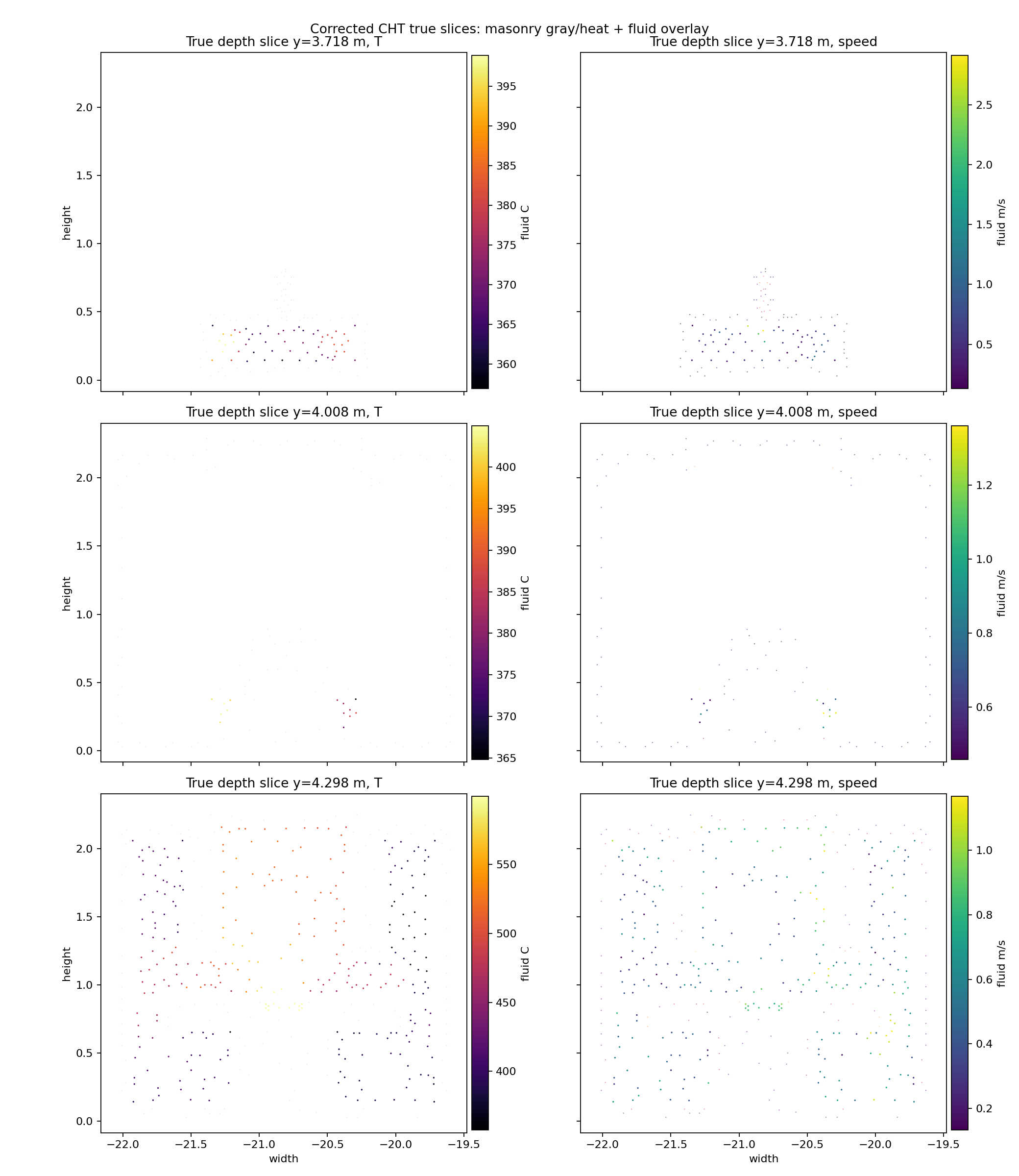

  • Next useful improvement is a smaller buoyant validation case, then CHT.
